Introduction to DC Power Jacks

DC power jacks, also known as DC barrel jacks, are essential components in electronic devices, providing a reliable and straightforward means of delivering direct current (DC) power from an external power source. These jacks are widely used in consumer electronics, industrial equipment, and many other applications due to their ease of use, reliability, and versatility.

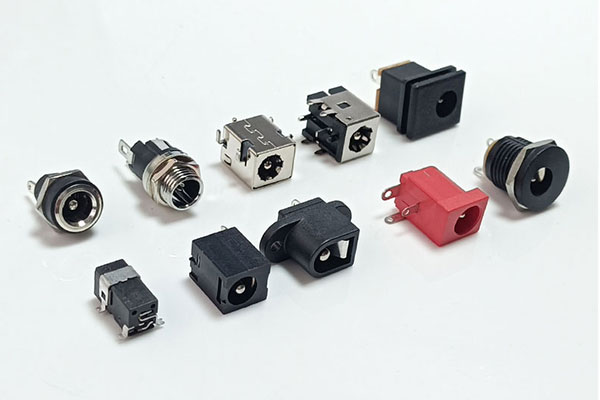

DC Power Jacks

Key Features

1. Design and Structure:

Barrel Connector: The typical DC power jack features a cylindrical barrel connector with a central pin. The outer barrel conducts the negative (ground) connection, while the inner pin carries the positive (voltage) connection. This design ensures secure and reliable electrical contact.

Housing Material: The housing is usually made of durable plastic or metal, providing protection and insulation for the internal contacts.

Mounting Styles: DC power jacks come in various mounting styles, including through-hole, surface-mount, and panel-mount options. This variety allows for flexibility in PCB design and device construction.

2. Electrical Specifications:

Voltage and Current Ratings: Different jacks support a range of voltage and current ratings, typically from 5V to 48V and up to 10A or more. Selecting the appropriate jack for your application ensures safe and efficient power delivery.

Contact Resistance: Low contact resistance is crucial for minimizing power loss and heat generation. High-quality DC jacks feature gold or nickel-plated contacts to enhance conductivity and reduce resistance.

3.Size and Compatibility:

Standard Sizes: DC power jacks are available in standard sizes (e.g., 2.1mm, 2.5mm inner diameter), ensuring compatibility with commonly used power adapters and plugs.

Custom Options: Some manufacturers offer custom designs to meet specific requirements, such as unique pin configurations or specialized housings.

Working Mechanism

DC power jacks work by establishing a secure connection between the power adapter and the device’s power circuitry. When the plug is inserted into the jack, the inner pin and outer barrel make contact with the corresponding parts of the plug, completing the electrical circuit and allowing current to flow into the device.

1. Insertion: The plug’s outer barrel slides into the jack, aligning the central pin with the plug’s inner contact.

2. Connection: As the plug is fully inserted, the inner contact of the plug meets the jack’s pin, and the outer barrel makes contact with the jack’s outer sleeve, establishing a secure electrical connection.

3. Current Flow: Once connected, DC power flows from the adapter through the jack into the device, powering the internal components.


1. Consumer Electronics:

Laptops and Tablets: DC power jacks are commonly used in charging ports, providing reliable power connections.

Portable Devices: Devices like cameras, radios, and handheld consoles utilize DC jacks for power input.

2. Industrial Equipment:

Instrumentation: Many industrial instruments and measurement devices rely on DC power jacks for stable power delivery.

Control Systems: DC jacks are used in control panels and automation systems, ensuring consistent power supply for critical operations.

3. Telecommunications:

Routers and Modems: Network devices frequently use DC power jacks to connect to external power adapters.

Base Stations: Telecommunications infrastructure often incorporates DC jacks for reliable power connections.


1. Simplicity and Ease of Use:

DC power jacks provide a simple and intuitive means of connecting devices to power sources. The plug-and-play design allows for quick and easy power connections.

2. Reliability:

High-quality materials and precise manufacturing ensure reliable performance, even in demanding environments. The secure connection minimizes the risk of power interruptions.

3. Versatility:

Available in various sizes and configurations, DC power jacks are versatile and can be used in a wide range of applications. Customizable options further enhance their applicability.

DC power jacks are vital components in the realm of electronics, offering a reliable and efficient way to deliver DC power to devices. With their robust design, various mounting styles, and wide range of electrical specifications, they are suitable for numerous applications across consumer electronics, industrial equipment, and telecommunications. Understanding the key features and benefits of DC power jacks helps in selecting the right component for your specific needs, ensuring optimal performance and longevity of your devices.
