SPST momentary tactile switch 6x6mm with green led

When it comes to designing electronic circuits, switches are integral components that help to control the flow of current through the various components. One type of switch that has become increasingly popular over the years is the momentary tactile switch. These switches are designed to be easy to operate and provide a tactile feedback when pressed, making them ideal for a wide range of applications.

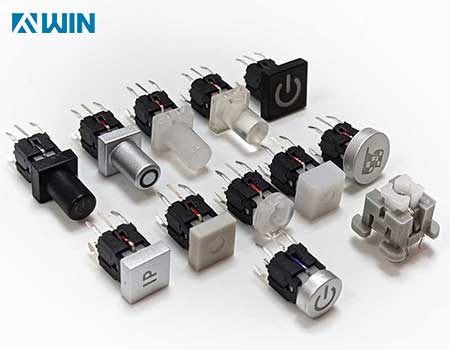

TS9 illuminated tact button.jpg

One particular switch that has gained a lot of attention in recent times is the SPST momentary tactile switch with a green LED. This switch, which measures just 6x6mm in size, is an excellent choice for those who want to add a touch of illumination to their electronic devices.

What sets this switch apart from others is the fact that it features a built-in green LED. This means that when the switch is pressed, the LED lights up, providing an additional visual cue to the user. This can be particularly useful in low-light environments, where it can be difficult to see whether a switch has been activated or not.

In terms of functionality, the switch is a standard single-pole single-throw (SPST) momentary switch. This means that it has two contacts that are normally open, and when the switch is pressed, these contacts are momentarily closed, allowing current to flow through the circuit. Once the switch is released, the contacts open again, breaking the circuit.

Despite its small size, the switch is highly durable and capable of withstanding repeated use. The switch has a minimum lifespan of 100,000 cycles, which means that it can be pressed and released tens of thousands of times without failing. This makes it an excellent choice for use in devices that are likely to be used frequently, such as remote controls, wireless keyboards, and game controllers.

Installation of the switch is relatively straightforward, and it can be easily mounted onto a printed circuit board (PCB) using through-hole soldering. The switch is designed to fit into a 6x6mm square cutout, making it easy to integrate into a wide range of designs.

In conclusion, the SPST momentary tactile switch with a green LED is an excellent choice for anyone looking to add a touch of illumination to their electronic devices. This switch is highly durable, easy to use, and provides a tactile feedback when pressed. Whether you are an electronics hobbyist or a professional designer, this switch is sure to meet your needs. So why not add one to your next project and see the benefits for yourself?
