What are DIP switches and jumpers used for?

DIP switches and jumpers are two common components used in electronic devices for a variety of purposes. They are small, mechanical devices that can be adjusted to change the behavior of a device or to configure it for specific settings.

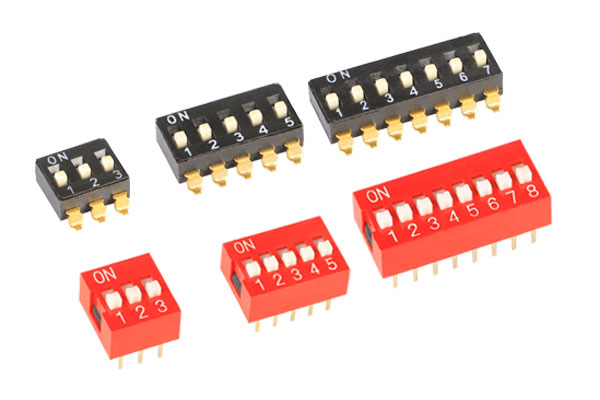

DIP switches, short for dual inline package switches, are tiny switches that are typically found on printed circuit boards (PCBs). They are called "dual inline" because they have two rows of pins that fit into sockets on the PCB. DIP switches are used to adjust the settings of a device, such as selecting a different operating mode or adjusting the input/output voltage levels. They are often used in devices that don't have a user interface, such as network routers, modems, and other electronic devices.

Jumpers, on the other hand, are small plastic caps or connectors that are used to link two pins together on a PCB. They are usually found adjacent to each other on a PCB and are used to manually configure a device by selecting specific jumper settings. Jumpers have the same effect as DIP switches, but they are typically used in simpler devices or where space is at a premium.

One common use for DIP switches and jumpers is to configure memory modules. In computer systems, memory modules are often configurable using DIP switches or jumpers to adjust the speed, voltage, and timing of the memory. Similarly, network devices such as switches and routers may use DIP switches and jumpers to configure port settings such as speed, duplex, and flow control.

Other uses for DIP switches and jumpers include configuring the boot sequence of a computer, changing the frequency of a clock signal, adjusting the output voltage of a power supply, and selecting different modes of operation for a device.

Overall, DIP switches and jumpers are important components in many electronic devices. They are easy to use and allow for quick configuration changes without the need for complicated software or user interfaces.
