What does "DIP" in DIP switch stand for?

"DIP" in DIP switch refers to Dual In-line Package—a packaging format where electrical contacts (pins) are arranged in two parallel rows, enabling standardized integration with printed circuit boards (PCBs) . A DIP switch is a manual, multi-position switch module that uses this packaging to deliver discrete binary or BCD (Binary-Coded Decimal) signaling, critical for device configuration without software programming .

Core Function of DIP Switches

DIP switches consist of independent, spring-loaded toggle or slide mechanisms (typically 1–12 positions). Each position acts as a miniature switch: toggled to "ON," it connects two corresponding pins; "OFF" breaks the connection . This allows engineers to set hardware parameters (e.g., address coding, function enable/disable) in industrial controls, communication gear, or legacy electronics—relying on mechanical state rather than volatile software.

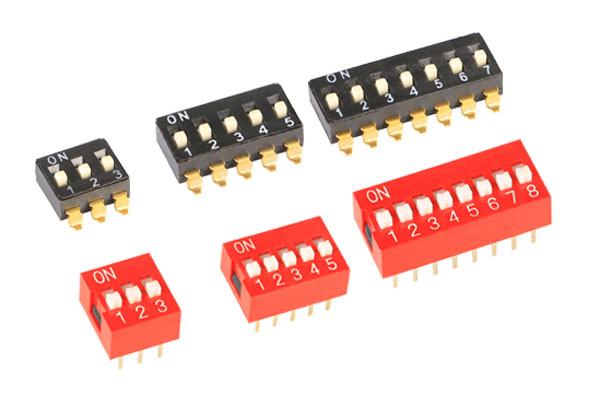

Through-Hole DIP Switches

The traditional variant, through-hole DIP switches feature rigid metal pins that penetrate PCB holes and are soldered to the board’s reverse side . Key traits include:

• Mechanical Stability: Pins provide structural reinforcement, ideal for high-vibration environments (e.g., industrial machinery, aerospace) .

• Repairability: Easy to replace manually, suiting field maintenance.

• Limitations: Requires PCB drilling, restricting dense layouts, and has larger footprints .

SMD DIP Switches

Surface-Mount Device (SMD) DIP switches eliminate through-hole pins, instead using solder pads for direct PCB surface mounting . Advantages include:

• Miniaturization: Compact dimensions (e.g., 1.27mm pin spacing) for portable devices (wearables, IoT sensors) .

• Automation Compatibility: Works with pick-and-place machines, boosting mass-production efficiency .

• Design Flexibility: No PCB drilling, enabling multi-layer board integration .

Both types adhere to RoHS/REACH standards and use materials like PC (flame-rated V-0) for housings, with silver-nickel contacts to minimize resistance . While SMD dominates modern electronics, through-hole DIP switches remain vital in rugged applications where mechanical resilience is non-negotiable.
