Explanation for SMD illuminated tact switch

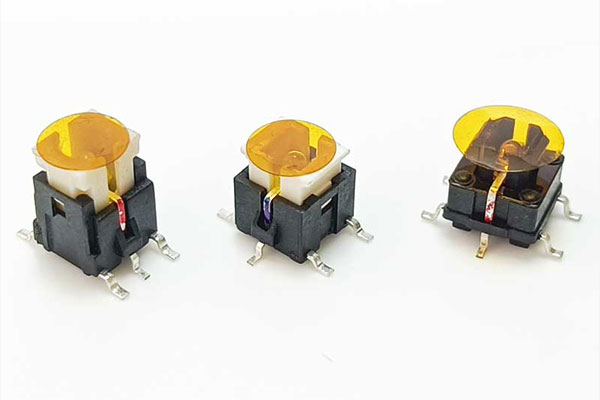

Surface Mount Device (SMD) illuminated tact switches are a type of tactile switch designed for surface mount applications, featuring built-in LED illumination. These switches are widely used in electronics manufacturing due to their compact size, low profile, and compatibility with automated assembly processes. Here's a detailed explanation of SMD illuminated tact switches:


Structure and Components:

  • Tactile Switch: The primary switching mechanism, comprising a plunger, contacts, and a base. When pressed, the plunger actuates the switch, making or breaking electrical connections.

  • LED (Light-Emitting Diode): Integrated into the switch housing to provide illumination. The LED emits light when the switch is activated, indicating the switch state.

  • Resistor: Often included to regulate the current flowing through the LED and protect it from damage.

  • Housing: The outer casing that encloses and protects the internal components of the switch.

  • SMD Pads: Contact points on the switch for surface mounting onto a printed circuit board (PCB).

  • SMD illuminated tact switches consist of several key components, including:

Working Principle:

  • When pressure is applied to the switch's actuator, it compresses a spring mechanism within the switch, causing the contacts to make or break an electrical circuit.

  • Simultaneously, the built-in LED is powered, emitting light to indicate the switch state (e.g., ON or OFF).

  • SMD illuminated tact switches operate based on the same principles as standard tactile switches, with the added feature of LED illumination.


  • Compact Size: SMD illuminated tact switches have a low profile and small footprint, making them suitable for space-constrained applications.

  • Compatibility: Designed for surface mount assembly, these switches are compatible with automated manufacturing processes, reducing assembly time and cost.

  • Enhanced Usability: The integrated LED provides visual feedback, improving user interface and accessibility.

  • Reliability: SMD illuminated tact switches are engineered for reliable performance and have a long lifespan, even under demanding conditions.

In summary, SMD illuminated tact switches are compact, surface-mountable switches with built-in LED illumination. They are widely used in electronics manufacturing for their versatility, reliability, and enhanced usability.
