Introduction to the Right Angle DPDT Push Button Switch

The right angle DPDT (Double Pole Double Throw) push button switch is a versatile electrical component widely used in circuit control systems. As its name suggests, it features a right-angle design for space-efficient installation and a DPDT configuration that enables simultaneous control of two independent circuits. Structurally, it typically has six pins arranged in two rows of three, with the middle pin in each row serving as the common terminal. The left and right pins correspond to the normally open (NO) and normally closed (NC) terminals, respectively. When actuated, the internal contacts shift, redirecting current from the common terminal between NO and NC to switch two circuits synchronously.

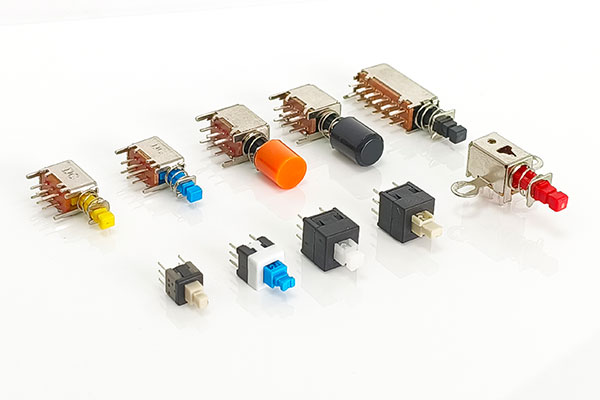

This switch family includes several variants to meet diverse needs. The mini pushbutton switch stands out for its compact size, making it ideal for space-constrained devices like portable electronics, smart wearables, and miniature sensors where every millimeter counts. Self-locking push button switches offer a latching function—once pressed, they maintain their state until pressed again, preventing accidental state changes. This stability makes them perfect for applications requiring consistent circuit states, such as device power controls. Micro push button switches, highly sensitive to minimal pressure, deliver precise responses, finding use in precision equipment like medical devices and laboratory instruments.

In terms of operational mechanics, the right angle design simplifies PCB mounting in tight spaces, while the DPDT configuration allows dual-circuit control with a single actuator. Each pole operates independently, with common, normally open, and normally closed contacts creating versatile switching options.

Applications span consumer electronics, industrial controls, and medical devices. Mini pushbutton switch variants fit into smartwatches and portable gadgets, while self-locking push button switch models secure critical settings in industrial machinery. Micro push button switch versions enable precise operation in diagnostic equipment and robotics.

Key advantages include reliable mechanical performance with up to 100,000 actuation cycles, consistent contact resistance, and wide operating temperature ranges. The modular design supports easy integration with existing systems, while various terminal options (solder, PCB, quick-connect) enhance installation flexibility.

Whether controlling audio amplifiers, automating home systems, or operating precision tools, the right angle DPDT push button switch delivers robust performance. Its combination of space-saving design, versatile switching capabilities, and durable construction makes it indispensable in modern electronic design.
