TS16 Series of SMD Illuminated Tactile Switches

FVWIN ts16 series of illuminated tactile switches are the perfect solution for designing devices that require low-power momentary switching with high durability, reliability, and aesthetics. These switches feature a low actuation force and a long operational life of up to 2 million cycles. They come with an integrated LED and provide clear, bright illumination for easy indication of the switch position.

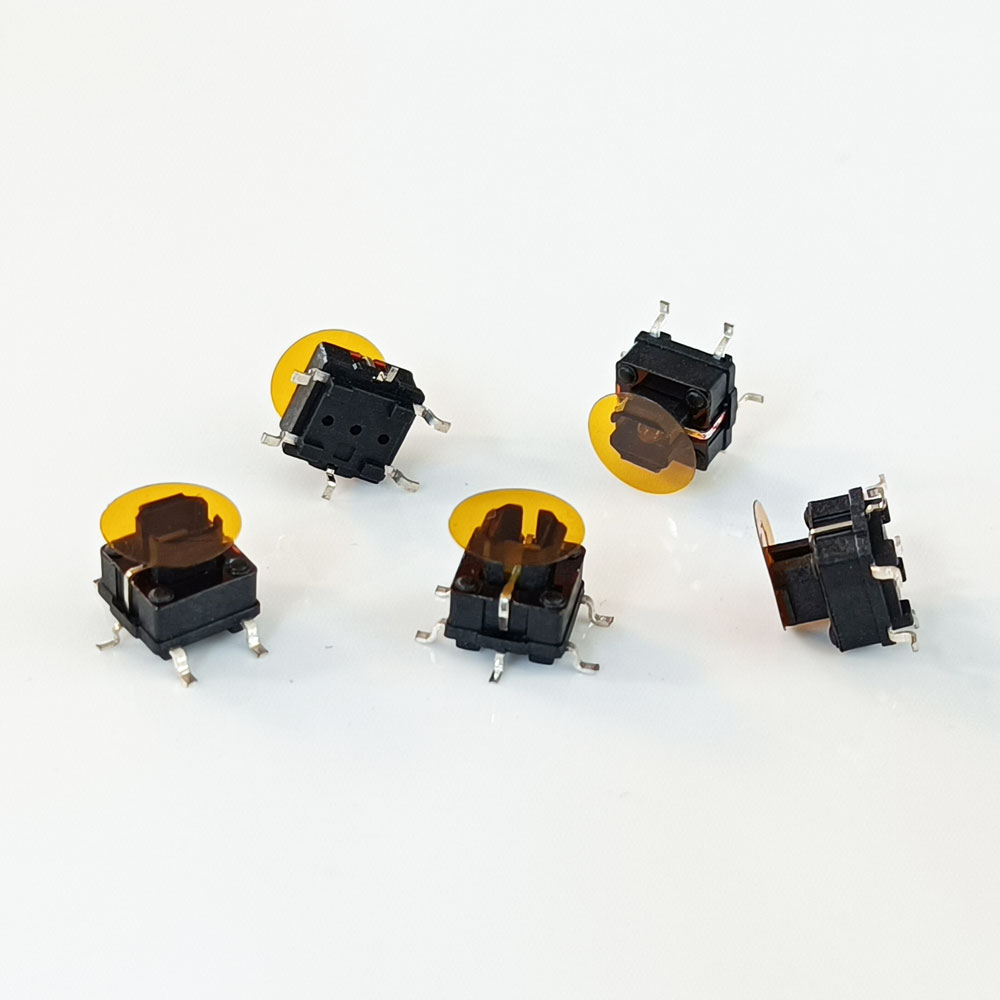

SMD illuminated tact switch

TS16 series illuminated tactile switches are built with high-quality materials that provide excellent durability and performance. The LED tact switches have a compact design, with a 6 mm x 6 mm footprint, which makes them ideal for devices that require space-saving components. The switch's actuator has a height of 4.3 mm and a force of 3 N, making it easy for the operator to feel the switch activation.

The switches come in two variants: SMD and through-hole technology. The SMD variant allows easy and fast surface mounting, which eliminates the need for additional connectors. The through-hole version, on the other hand, provides reliable mechanical stability and easy assembly to a printed circuit board (PCB).


One of the key features of the TS16 series of illuminated tactile switches is their built-in LED that provides bright and clear illumination. The switches come in four different illumination colors: red, green, yellow, and blue. The illumination voltage ranges from 1.8 V to 3.6 V, making them suitable for low-power applications.

The LED sits beside the actuator, providing a clear indication of the switch status. The LED can indicate various conditions such as power on/off, input signal status, or machine operation status. This feature is useful for users who want to know the switching status at a glance.


The TS16 series of illuminated tactile switches are versatile components that can be used in a wide range of applications. Their small size, low power, and high durability make them ideal for handheld devices, wearable electronics, IoT devices, and other consumer electronics.

The illumination feature also allows for easy integration into control panels, machine interfaces, and other devices that require illumination. The switches are also suitable for industrial applications such as automated manufacturing, automotive, and aerospace, where they can be used in control units, safety switches, and other applications.

In summary, the TS16 series of illuminated tactile switches are reliable, durable, and easy to use components that provide excellent performance. Their integration of illumination into a small form-factor makes them ideal for a wide range of applications. With multiple illumination colors and a long lifespan, these switches offer the perfect solution for designers looking for low-power, reliable, and visually striking switches.
