What is the DC power jack?

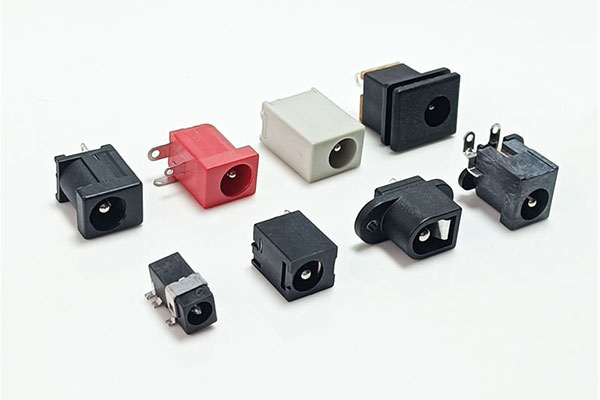

The DC power jack, also known as a DC power connector or DC power socket, is a fundamental component found in a wide array of electronic devices. Its primary function is to provide a means of connecting an external power source to the device, typically in the form of direct current (DC) electricity. Here's a detailed explanation of its key aspects:


1. Purpose: The DC power jack serves as the interface between the external power supply and the device it powers. It allows for the transmission of electrical power from the power source to the device, enabling its operation or charging.

2. Physical Characteristics: DC power jacks come in various shapes, sizes, and configurations, depending on the specific requirements of the device and the type of power connector used. Common shapes include cylindrical, barrel, and coaxial, while sizes can range from miniature to standard.

3. Polarity and Voltage: DC power jacks are typically designed to accommodate a specific polarity and voltage rating to ensure compatibility with the device and power supply. Polarity refers to the orientation of the positive (+) and negative (-) terminals, while voltage denotes the electrical potential difference between them.

4. Connection Mechanism: The DC power jack features internal contacts that establish electrical connection with the corresponding pins or terminals of the power plug when inserted. This connection is often secured through mechanisms such as spring-loaded contacts, locking mechanisms, or screw terminals, depending on the design.

5. Applications: DC power jacks are ubiquitous in various electronic devices, including laptops, routers, modems, monitors, audio equipment, and countless others. They are essential for supplying power to these devices either from AC adapters, batteries, or external power sources.

6. Reliability and Durability: Given their critical role in powering electronic devices, DC power jacks are engineered for reliability and durability. They undergo rigorous testing to ensure proper electrical conductivity, mechanical strength, and longevity, even under repeated insertion and extraction cycles.

In summary, the DC power jack serves as the vital link between external power sources and electronic devices, facilitating the transmission of electrical power for their operation or charging. Its diverse applications, physical characteristics, and reliability make it an indispensable component in modern electronics.
