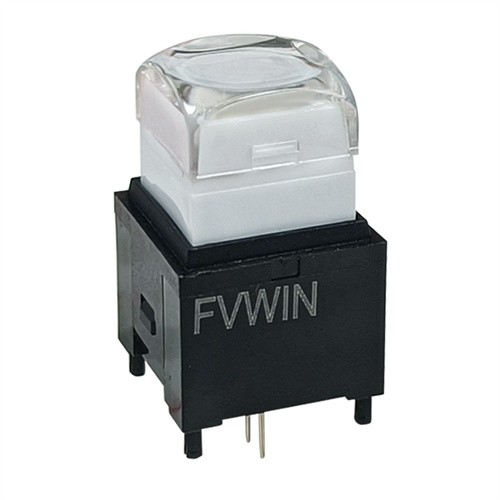

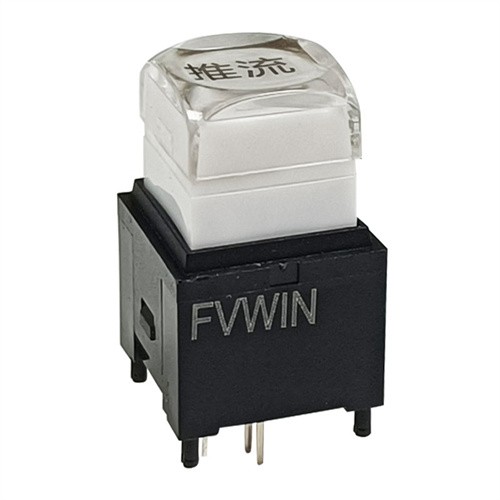

12x12mm Video Illuminated Pushbutton Switch

Video illuminated pushbutton switches are essential components for a wide range of applications that require momentary switching functionality


Video illuminated pushbutton switches are essential components for a wide range of applications that require momentary switching functionality. They are commonly used in musical equipment, gaming systems, automotive applications, and medical devices. These switches are typically classified as tactile, meaning they require a physical push to activate, and provide both an audible and tactile feedback when pressed. The 12x12mm video illuminated pushbutton switch is a popular choice for many applications because of its compact size and versatility.

The 12x12mm video illuminated pushbutton switch features a metal dome covered with a plastic actuator. The dome makes contact with a printed circuit board (PCB) when the button is pressed. The PCB has a metal contact pad that forms an electrical connection with the dome. The switch keeps the contact open when not pressed, and it closes when the button is pressed. This closure triggers the device, which is then ready for use.

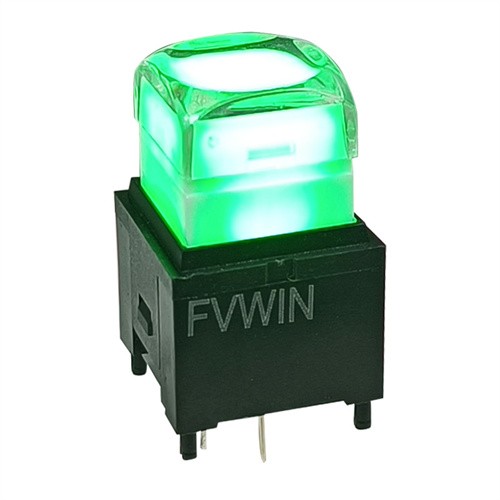

The switch is also equipped with a light-emitting diode (LED) that illuminates when the button is pressed. The LED is connected to a resistor that controls the brightness of the illumination. The LED can be either bi-color or mono-color in color, depending on the application requirements. The bi-color LEDs change their color when pushed, and the mono-color LEDs offer a steady light when pushed.

                                         Model                   PB24-0000G
                                         Product Item                   Push Button Switch

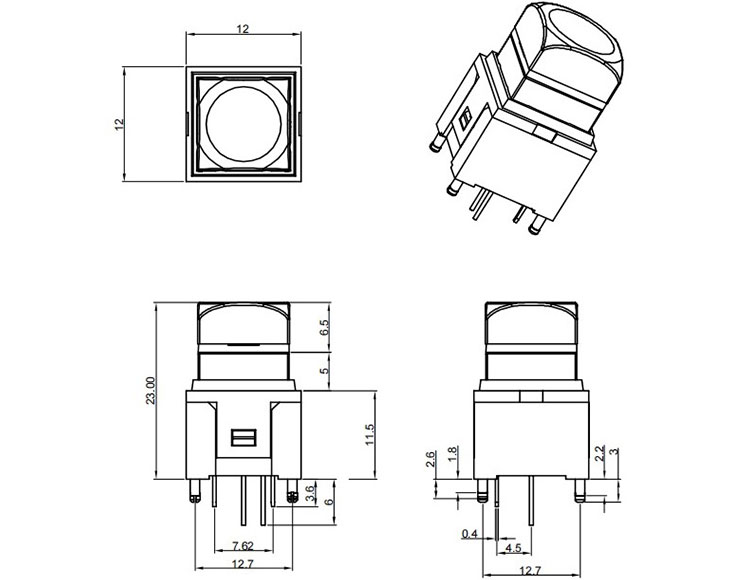

                                         Switch Size                   12.0*12.0mm
                                         Actuator Color                   White
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   T/T 100% in advance
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS




Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.



Silicone tact switches are used in a wide range of electronic devices, including keyboards, remote controls, and game controllers. They are also used in medical equipment, such as ventilators and infusion pumps. The switches are also commonly used in control panels for instruments and certain appliances.


Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013,our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology, our product include in illuminated tact switch, push button switch, toggle switch, rocker switch, slide switch, DIP switch, wafer terminal ,AC & DC socket and connectors.





We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.



Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
