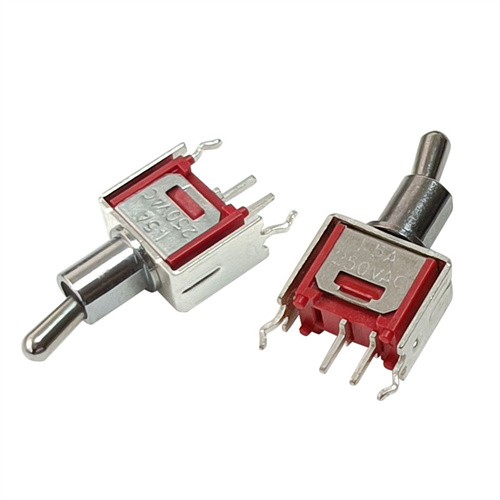

2 Position Momentary Toggle Switch

A subminiature toggle switch is a type of electronic switch that is of small size and can be used in various applications that have limited space. These switches can be used in different electronic devices including portable devices, small-sized amplifiers, and other electronic circuits that require low voltage and small currents. Subminiature toggle switches have a compact design that allows them to fit in tight spaces and can be easily mountable on a PCB board.

Features of Subminiature Toggle Switches

Subminiature toggle switches are designed to work at low voltage and low currents. They have a small and compact design that makes them ideal for use in applications that require small switches. The switch can handle up to 2Amps of current, which is sufficient for most electronic circuits. They are also designed to work at a lower voltage, typically around 30 volts DC or less.

Subminiature toggle switches come with different types of actuators. The most common type is the lever actuator, which is a small lever that toggles the switch on and off. Other types of actuators include the paddle, bat, and rocker types. The actuator can be of different lengths and shapes to suit different requirements.

A subminiature toggle switch is a compact yet highly functional electrical switch widely used in various applications. Measuring significantly smaller than standard toggle switches, its diminutive size makes it ideal for space - constrained environments.

Despite its small form factor, a subminiature toggle switch doesn't compromise on performance. It typically consists of a toggle lever, contact terminals, and an insulating housing. When the lever is flipped, it changes the electrical connection between the terminals, allowing or interrupting the flow of current. These switches can handle different voltage and current ratings, catering to diverse electrical requirements.

Subminiature toggle switches are available in multiple types, such as single - pole single - throw (SPST), single - pole double - throw (SPDT), and more complex multi - pole configurations. Each type serves a specific purpose. For instance, an SPST switch is often used for simple on - off operations, while an SPDT switch enables switching between two different circuits.

They find extensive use in consumer electronics like portable devices, where space is at a premium. In the aerospace and defense sectors, their reliability and small size make them suitable for avionics systems and military equipment. Additionally, they are common in medical devices, automotive electronics, and industrial control panels, providing precise and durable switching solutions in a wide range of scenarios.
