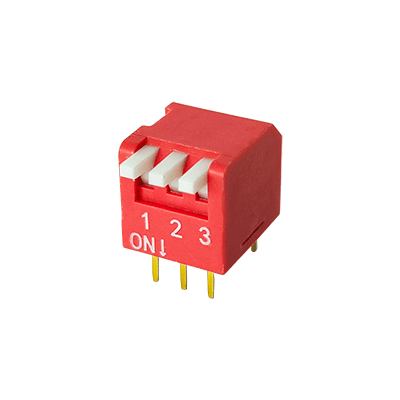

3 Way Red Piano DIP Switch

3 Way Red Piano DIP Switch - Compact 3-position switch for easy ON/OFF settings and reliable PCB configuration.

 The 3-Way Red Piano DIP Switch is a specialized, side-actuated configuration switch engineered for edge-of-board PCB mounting. Featuring a distinct horizontal "piano-key" layout housed in a high-visibility red chassis, this 3-position component allows users to easily adjust up to eight unique binary configurations even when the circuit board is fully installed inside a tight enclosure or rack mount system.

Key Performance Features

1. Side-Actuated Piano Design: The horizontal keys protrude facing outward rather than upward. This lets field technicians toggle the switches safely from the side edge, removing the need to reach deep inside live hardware or dismantle the chassis.

High-Contrast Red Housing: The bright red molding stands out instantly against standard dark circuit boards, streamlining visual inspections during manufacturing assembly and field servicing.

2. Self-Cleaning Wiping Contacts: Built with high-purity phosphor bronze springs and thick gold-over-nickel plating. The contact mechanism physically sweeps away microscopic surface dust and oxidation every time a key is flipped.

3. End-to-End Stackable Pitch: Adheres to standard 2.54mm spacing, allowing multiple units to line up perfectly end-to-end without wasting precious board real estate.

Why Choose Our Red Piano DIP Switches?

Standard DIP switches often present major maintenance hurdles; vertical sliders are hard to reach near enclosure walls, and cheap plastics warp under the high heat of wave soldering. We engineered our piano switches to eliminate these specific issues. We use ultra-durable, heat-stabilized liquid crystal polymer (LCP) plastics that handle production reflow profiles effortlessly without losing structural alignment.

Our internal dual-contact structure exerts constant mechanical pressure, ensuring the keys never shift or chatter under heavy industrial vibration. By choosing our components, you reduce post-soldering failures, protect your equipment from environmental contact degradation, and secure a highly reliable supply chain with competitive, direct-factory tier pricing.
