Left side PCB terminal micro switch

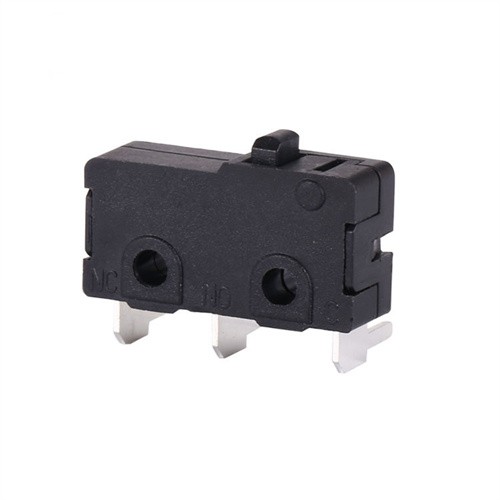

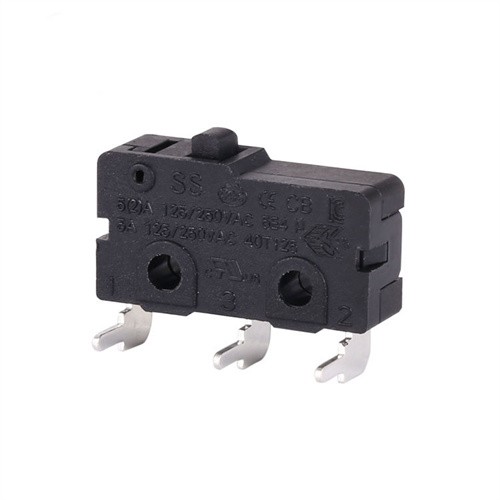

The Left Side PCB Terminal Micro Switch is a compact, reliable, and versatile electromechanical component designed for use in applications requiring precise position sensing, limit switching, or safety interlocking. Featuring a left-side PCB terminal, this micro switch offers a unique mounting configuration that allows for easy integration into printed circuit boards (PCBs) or other space-constrained assemblies. It is engineered to deliver quick, reliable switching with minimal mechanical movement, making it suitable for both high-frequency and low-power circuits across a wide range of industries.

Micro switches, often referred to as snap-action switches, are highly valued for their ability to provide fast, decisive switching action in response to even the smallest mechanical movements. The Left Side PCB Terminal Micro Switch takes this functionality and combines it with an innovative terminal configuration, making it ideal for applications where space-saving, precision, and durability are key.

In this article, we will explore the key features, technical specifications, and common applications of the Left Side PCB Terminal Micro Switch, highlighting how its unique design can be leveraged for effective and reliable switching in both commercial and industrial environments.

• Left-Side PCB Terminal Configuration:The left-side PCB terminal is the distinguishing feature of this micro switch. This configuration enables the switch to be mounted directly onto the left-hand side of a PCB, offering flexibility in design and integration. The terminal positioning allows for a more compact design in devices or systems with space limitations, while still providing a reliable electrical connection for the switch. The left-side placement also makes it easy to connect to adjacent components or circuits on the PCB.

• Snap-Action Mechanism:Like all micro switches, the Left Side PCB Terminal Micro Switch uses a snap-action mechanism. When the actuator is pressed, the internal contacts quickly and decisively shift from open to closed (or vice versa), ensuring fast response times and minimal contact bounce. This snap-action feature is ideal for systems that require precision switching or those that need to operate without delay, such as in control systems, safety devices, and automated machinery.

• Compact and Space-Efficient Design:The compact design of the micro switch ensures that it takes up minimal space on the PCB, making it perfect for applications where every square millimeter counts. The left-side terminal configuration also ensures a streamlined layout, allowing for efficient routing of traces on the PCB. This small size does not compromise the switch's performance, as it delivers the same reliable, high-quality switching as larger micro switches.

• Current and Voltage Ratings:The Left Side PCB Terminal Micro Switch typically supports current ratings of up to 5A at 125V AC or 250V AC, and 3A at 12V DC or 24V DC. This makes it suitable for a wide variety of low-to-medium power circuits, such as in consumer electronics, industrial machinery, and automated systems. Its versatility in handling both AC and DC circuits makes it adaptable to various electrical systems.

• Long Mechanical Life:This micro switch is engineered to withstand up to 1 million mechanical cycles, making it highly durable and well-suited for high-frequency switching applications. Its long mechanical life ensures consistent performance even in demanding environments, reducing the need for frequent replacements and minimizing downtime in industrial or commercial systems.

• Tactile Feedback for Actuation Confirmation:The tactile feedback provided by the actuator ensures that users can feel when the switch has been activated. This tactile feedback is particularly important in applications where manual interaction with the device is required, such as control panels, safety systems, or user interfaces.

• Versatile Mounting and Installation:The left-side PCB terminal allows for through-hole mounting, which ensures a secure and stable connection between the switch and the PCB. This makes installation easier and more reliable, as the switch can be soldered directly into the board with minimal effort. The terminals also offer excellent electrical conductivity and mechanical stability, ensuring long-lasting operation.

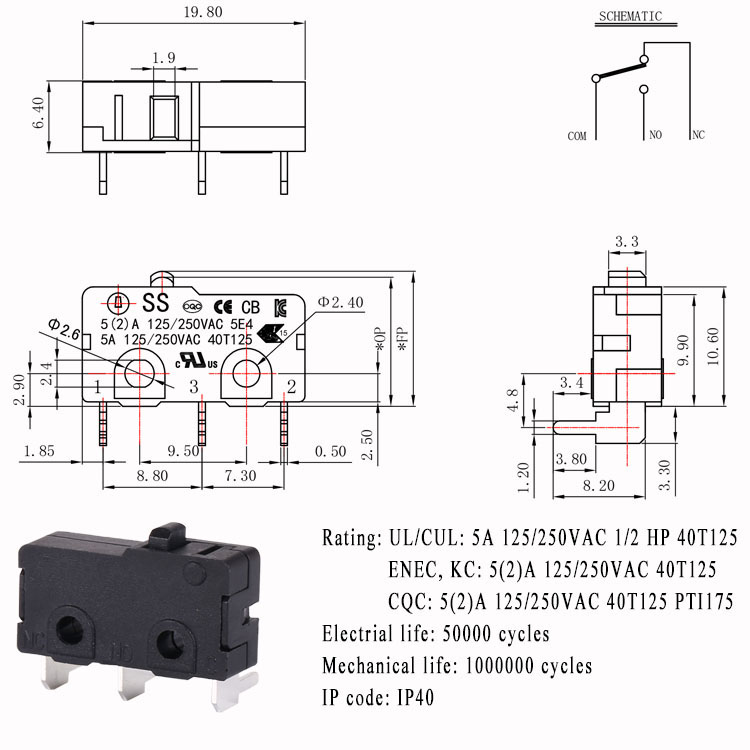

PRODUCT DIMENSION
