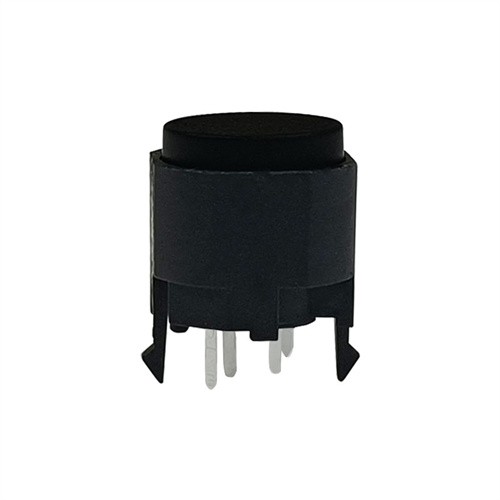

Pushbutton Switch OFF-(ON)

The Pushbutton Switch OFF-(ON)  is an electromechanical switch designed to control the flow of electrical current in a single circuit. It comprises of a button or actuator and a set of contacts that are either open or closed depending on the position of the button. The contact of the switch is normally open when the button is not pressed, but when the button is pressed, the switch is closed, allowing electrical current to flow through the circuit.

The functionality of the Pushbutton Switch OFF-(ON)  is based on the concept of a momentary switch. A momentary switch is a type of switch that is designed to be activated for only a short period of time. When the button is pressed, the electrical current flows through the circuit as long as the button remains pressed. Once the button is released, the switch returns to its initial state, and the electrical current flow stops.

The Pushbutton Switch OFF-(ON)  is designed to be activated by pressing the button, and it is deactivated once the button is released. The button design can either be recessed or protruding depending on the application. The switch is available in a variety of sizes, shapes, and operating voltage ratings ranging from a few volts to hundreds of volts.

Pushbutton Switch OFF-(ON) is used in medical devices such as inhalers, blood glucose meters, and insulin pumps. The switch is used to control various functions such as dosage, activation, and deactivation of the device, allowing the user to manage their medical conditions with ease.The Single Pole Single Throw (SPST) Momentary Push Button switch is a simple and versatile switch that is widely used in various applications due to its simplicity, reliability, and ease of use. The switch is available in a variety of sizes, shapes, and operating voltage ratings, making it suitable for a wide range of applications. Some of the common applications of the switch include audio-visual equipment, home automation systems, electronic toys, computer peripherals, and medical devices, among others.

Applications

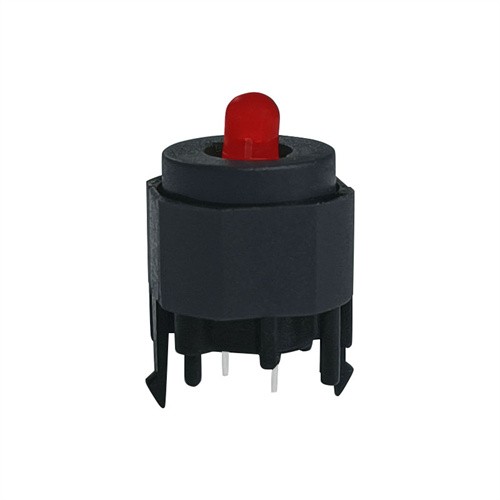

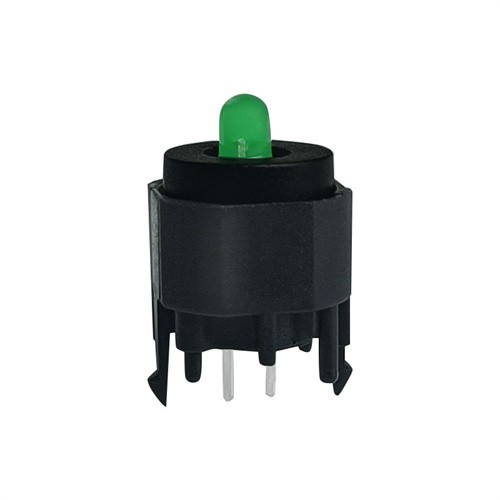

• Consumer Electronics: In household appliances like microwave ovens, the momentary round push button switch with an LED can be used for starting and stopping functions, with the LED indicating the cooking status. In gaming controllers, it can serve as action buttons, and the LED can flash to show special in - game events or low - battery warnings.

• Automotive: In cars, these switches can be found on the dashboard for controlling features such as fog lights, hazard lights, or seat heaters. The LED indicator helps the driver quickly identify whether a particular function is active.

• Industrial Control: In industrial settings, they are used on control panels to start and stop machinery. The LED can be configured to show if the machine is running, in standby mode, or if there is a fault in the system, enabling operators to monitor and manage the equipment efficiently.
