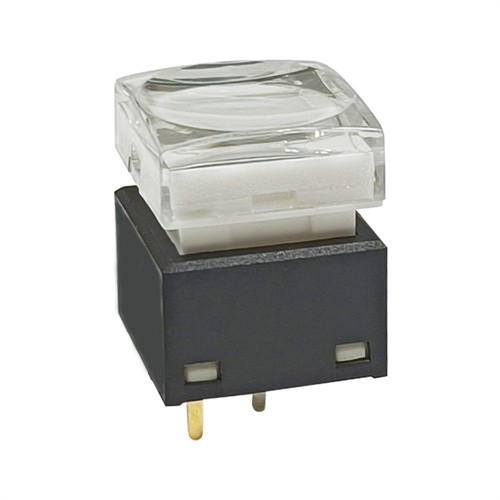

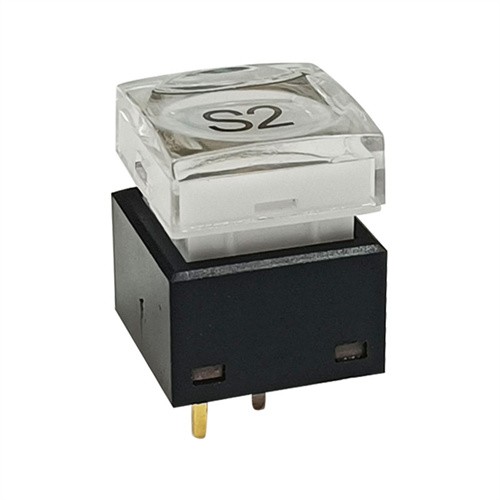

Latching Illuminated Pushbutton Switch

A latching illuminated pushbutton switch is a type of switch that comes with a lighted mechanism that can signal whether the switch is in the on or off position


A latching illuminated pushbutton switch is a type of switch that comes with a lighted mechanism that can signal whether the switch is in the on or off position. These switches are typically LED illuminated, meaning that when the switch is toggled on, a light-emitting diode (LED) will glow to visually indicate the device state.

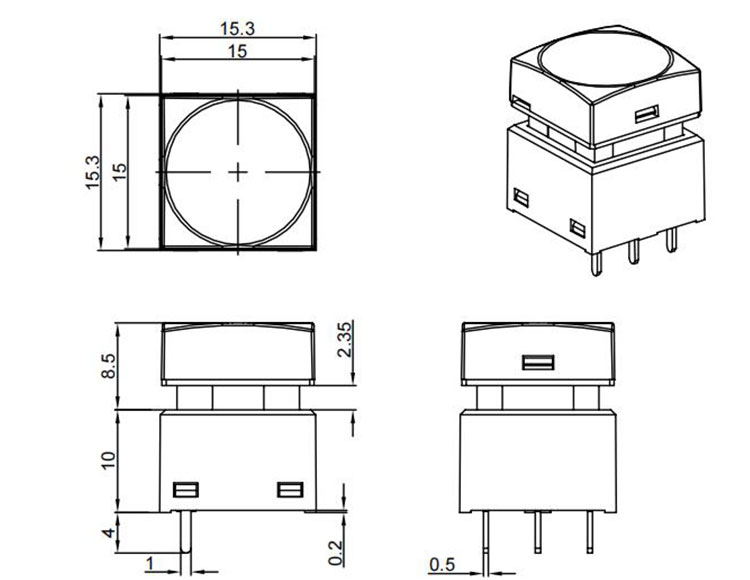

The dimensions of a latching illuminated pushbutton switch can vary depending on the manufacturer. The most common size for such switches is 15x15mm, which is a perfect size for most applications. However, the size of the switch can range from very small to very large, depending on the requirements of the user.

The switch is typically made up of a plastic or metal body, and the button is made of plastic. The body and button are designed to be durable and long-lasting, ensuring that the switch will last for many years. The switch also features a locking mechanism, which enables the user to lock the switch in the on or off position.The operation of a latching illuminated pushbutton switch is simple. When the switch is toggled on, the LED light will glow, indicating that the device is on. To turn the device off, the switch is toggled again, and the LED light will turn off, indicating that the device is off.

These switches are often used in electronic circuits, where they can power on or off a device without the need for an integrated circuit. The latching mechanism enables the user to toggle the device state without holding the button down, making it easy to use.

                                         Model                   PB30A-0000W
                                         Product Item                   Push Button Switch
                                         Switch Size                   15.0*15.0mm
                                         Actuator Color                   White
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   T/T 100% in advance
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS




Illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.



Silicone tact switches are used in a wide range of electronic devices, including keyboards, remote controls, and game controllers. They are also used in medical equipment, such as ventilators and infusion pumps. The switches are also commonly used in control panels for instruments and certain appliances.
