Locking Push Button Switch

A latching push button is a type of switch that is designed to work in a way that once you press it, it remains in its pressed state until you press it again. It is an essential component in any electrical circuit since it is used to control the flow of electricity. The latching push button is found in various applications like in appliances, cars, medical equipment, and industrial machinery, to name a few.

The construction of a latching push button is designed using two spring-loaded contacts that come together when the button is pressed, allowing current to flow through the circuit. The two contacts are then held together mechanically, which assures that the circuit remains closed even when the user releases the button.

Advantages of Latching Push Buttons

One of the significant advantages of latching push buttons is that they provide a simple on and off control mechanism. It allows the user to turn on the circuit when they need it and to turn it off when they are done using it. Additionally, since the latching push button only requires a quick press to turn it on, it makes it easy for the user to activate it with minimal effort.

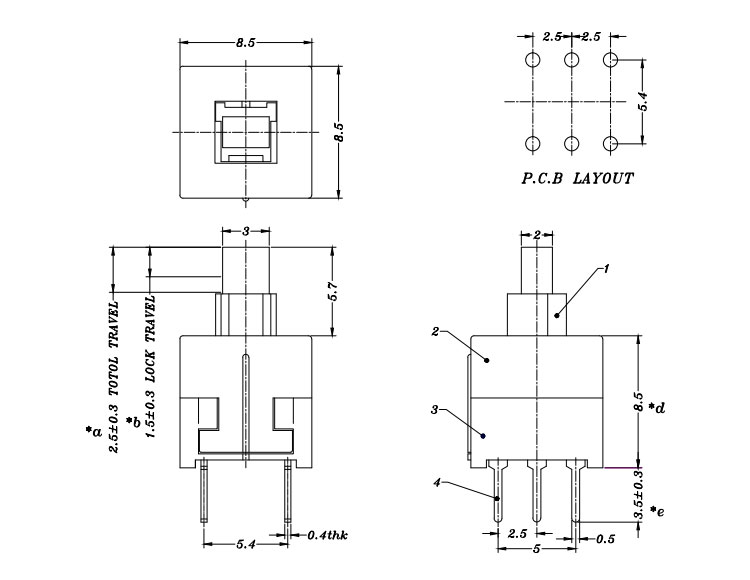

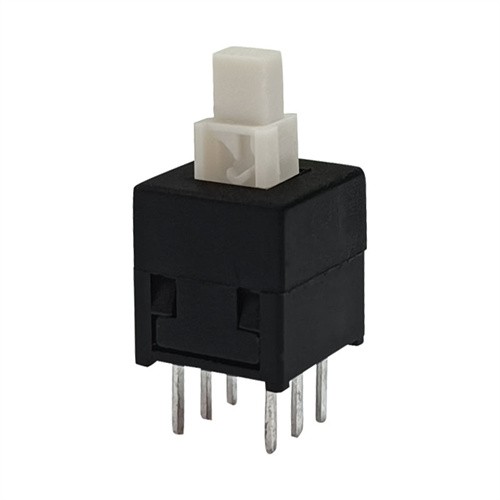

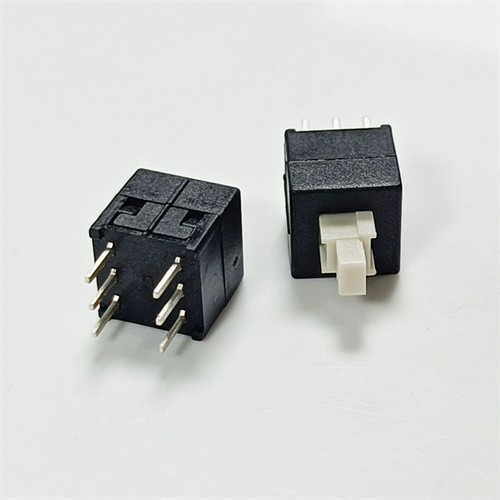

The latching 6PIN push button, measuring 8.5*8.5MM, is a compact yet highly functional component in the realm of electrical switches. This mini push button combines a small footprint with versatile connectivity, making it an ideal choice for a wide range of applications.

Structurally, its 8.5*8.5MM size allows for easy integration into space - constrained circuit boards. Despite its small dimensions, it packs a powerful punch with six pins, which significantly expand its functionality. The latching mechanism is a key feature of this push button switch. Unlike momentary switches that only make contact while being pressed, the latching 6PIN push button remains in the "on" or "off" state until manually toggled again. This locking feature ensures that the circuit maintains its status without the need for continuous pressure, providing reliability and stability in various electrical systems.

The six pins on this push button switch offer enhanced connectivity options. They can be used to create complex circuit configurations, such as connecting multiple circuits simultaneously or enabling different operating modes. For example, in some applications, the pins can be configured to control power supply, signal routing, or status indication. This flexibility makes the 6 pin locking push button switch suitable for a diverse range of projects, from consumer electronics to industrial control systems.

In consumer electronics, it can be found in devices like portable media players, where it can be used to lock the device controls to prevent accidental operation. In gaming controllers, the latching function can be utilized to toggle between different control schemes, and the six pins can handle the multiple electrical connections required for various buttons and sensors.

In industrial settings, the 6PIN push button switch's durability and locking mechanism make it a reliable choice for controlling machinery and equipment. The ability to maintain a set state is crucial in industrial environments, where a stable electrical connection can prevent errors and ensure safety
