Micro Switch Snap Action

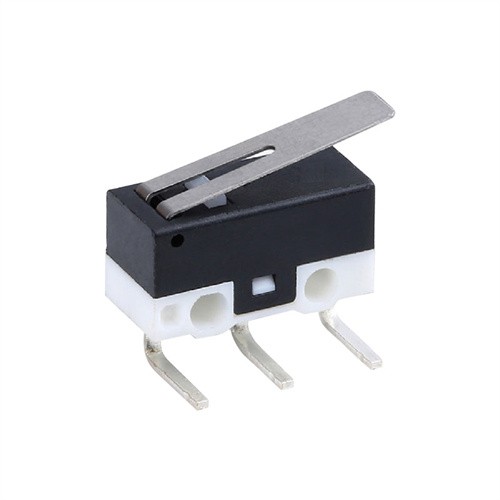

A Mini Right Angle 3 Pin Micro Switch is a small, low-cost, and highly reliable mechanical switch that is commonly used in various electrical and electronic devices. The switch is designed to turn ON or OFF the circuit automatically when the actuator is pressed or released.

The switch is used in various applications to detect the presence, absence, or position of an object or device. For instance, it is used in doorbells to detect the opening and closing of doors or gates, in washing machines to detect the lid opening, in vending machines to detect the dispensing of items, and many more.

The Mini Right Angle 3 Pin Micro Switch contains three pins or terminals, namely, Common (COM), Normally Open (NO), and Normally Closed (NC). The Common (COM) terminal is connected to the power source, while the Normally Open (NO) and Normally Closed (NC) terminals are connected to the load or the device being controlled.

When the actuator is not pressed, the switch is in the OFF state, and the Common (COM) terminal is connected to the Normally Closed (NC) terminal, and the circuit is completed. When the actuator is pressed, the switch moves to the ON state, and the Common (COM) terminal is connected to the Normally Open (NO) terminal, and the circuit is broken. Thus, the Mini Right Angle 3 Pin Micro Switch is useful in applications where a device must be turned ON or OFF automatically when an object or device comes into contact with the actuator.

The Mini Right Angle 3 Pin Micro Switch is designed to be highly reliable, with a long life cycle, low actuation force, and high precision. The switch is also compact and lightweight, making it easy to use in small devices or tight spaces.

In conclusion, the Mini Right Angle 3 Pin Micro Switch is a highly versatile and reliable mechanical switch that is commonly used in various electrical and electronic devices to detect the presence, absence, or position of an object or device. The switch is designed to be compact, lightweight, and highly precise, making it an ideal choice for many different applications.

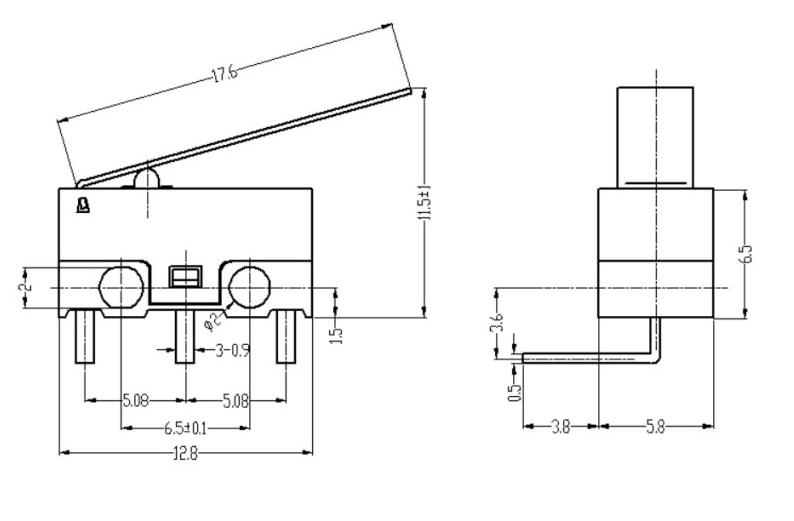

PRODUCT DIMENSION

PRODUCT CATEGORY

illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.

COMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013，our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology

OUR EXHIBITIONS

EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.

CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
