Self Locking Button Switch

A self-locking push button switch is an essential component in various electronic circuits.


A self-locking push button switch is an essential component in various electronic circuits. It is a button switch that stays in the "on" or "off" position when pressed. This switch is useful in situations where it's important to keep a circuit on or off for a long period. A typical example is the power switch on a computer. Once the button is pressed, it locks in place until it's pressed again.

One of the most common types of self-locking push button switches is the round switch. The 7.5mm round self-locking push button switch is ideal for use in industrial control systems, medical equipment, and other applications that require a reliable and durable switch.

The switch is usually constructed with a metal case that ensures it is strong and sturdy enough to withstand harsh environmental conditions. The switch's button is made of plastic, but it's also possible to have a button made of metal.

One of the significant advantages of the 7.5mm round self-locking push button switch is its compatibility with a range of voltages. It can work with both AC and DC voltages, meaning it can be used with various electronic circuits with different power requirements.

The switch is also designed with a simple and straightforward mechanism that makes it easy to use. When the button is pressed, it latches in place, and the circuit remains on. To turn off the circuit, the button must be pressed again, and it unlocks and returns to the original position.

The 7.5mm round self-locking push button switch is available in different configurations, such as single-pole, double-pole, and triple-pole. Single-pole switches have one input and one output, while double-pole switches have two inputs and two outputs. Triple-pole switches have three inputs and three outputs.

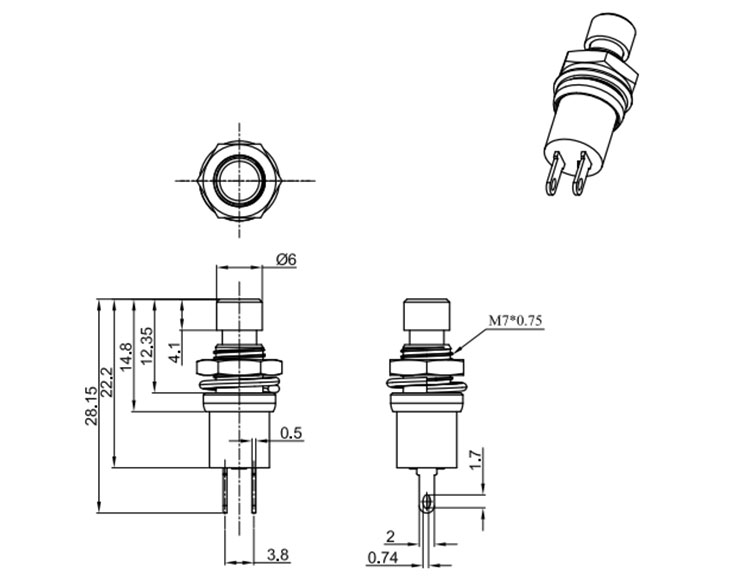

                                         Model                   PB05-PPG
                                         Product Item                   Push Button Switch
                                         Cut out Size                   16.0mm
                                         Button Options                   White/ Red/Blue/Yellow/Green
                                         Actuation Force                   250gf
                                         Function                   Momentary
                   6A 125VAC, 3A 250VAC
                   T/T 100% in advance
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS




Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.



Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013,our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology





We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.



Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
