How Right-Angle LED Tact Switches Save PCB Space

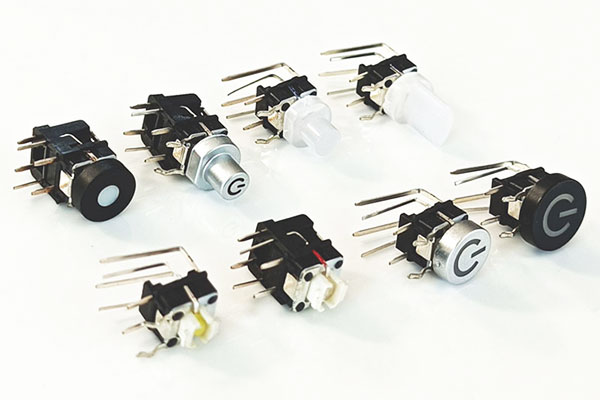

A right-angle LED tactile switch is a practical choice when the PCB layout requires the button to operate from the side of the board. With the LED and tactile switching function combined in one compact component, it saves board space while giving users clear visual and tactile feedback.

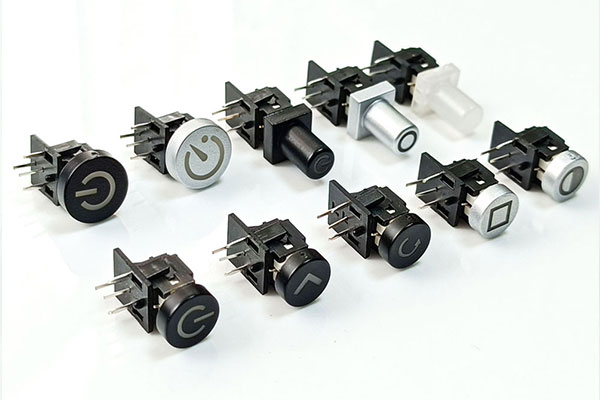

The right-angle terminal design allows the switch to sit along the edge of the PCB, making it suitable for equipment where the button needs to face the front or side of the enclosure. This is especially useful for audio equipment, broadcast consoles, control panels, test instruments and other electronic devices with limited internal space.

The built-in LED adds another useful function. Red, green, blue, white, bi-color options can be selected depending on the model, allowing the button to work as both a control and status indicator. Users can quickly recognize different functions without needing separate indicator components.

For manufacturers, another advantage is straightforward PCB assembly. Depending on the model, right-angle LED tact switches can be supplied for through-hole or SMT applications. The compact design helps engineers make better use of the PCB edge while keeping the control panel clean and organized.

At Rucoe, we provide various right-angle illuminated tact switch options for customers with different PCB layouts and operating requirements. If you are developing a new control panel or looking for a replacement switch, samples can be tested for button feel, LED brightness, mounting position and PCB compatibility before bulk production.

Need a right-angle LED tact switch for your project? Send us your PCB dimensions, LED requirements and switching specifications. We can help you select a suitable model for your application.
