What Are the Main Advantages of a Right Angle Illuminated Tact Switch

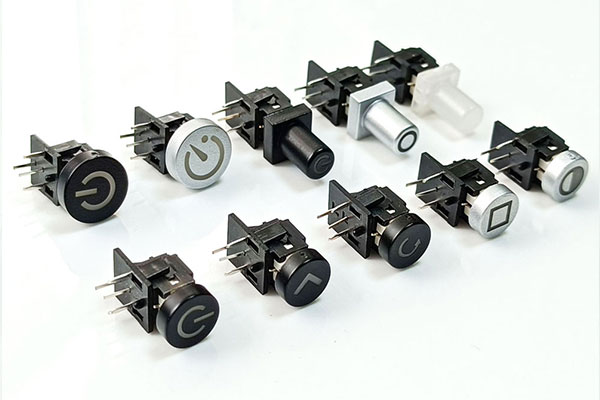

Right angle illuminated tact switches are a practical choice when PCB space is limited but reliable switching and clear visual feedback are still important. Their right-angle terminal design makes them suitable for side-mounted operation, while the built-in LED helps users find the switch quickly, especially in dark or enclosed control areas. For equipment manufacturers, they offer a good balance of compact size, easy installation, reliable operation, and flexible design options.

1. Excellent Tactile Feedback

One of the main reasons to choose a mini LED illuminated tact switch is its clear tactile response. When the button is pressed, the internal contact mechanism produces a noticeable click, allowing the user to feel when the switch has been activated.

This is particularly useful for control panels, keyboards, gaming equipment, audio devices, and other products where users need a clear response from every press. The tactile feel also helps reduce accidental operation because the user can easily recognize the switching action.

2. Compact and Flexible Design

Space is often limited inside modern electronic equipment. A right-angle tact switch can be mounted along the edge of a PCB, helping designers make better use of the available board space.

Momentary illuminated tact switches are also available in different sizes, operating forces, LED colors, and terminal configurations. This gives engineers more flexibility when choosing a switch for a specific PCB layout or operating environment.

3. Reliable for Long-Term Use

For manufacturers, switch reliability is just as important as the initial cost. A good tact switch needs to maintain its switching performance after repeated operation.

Right angle illuminated tact switches are designed for dependable operation and long service life. Depending on the specific model, different construction and protection options can also be selected to meet the requirements of the final application.

4. LED Illumination Makes Operation Easier

The built-in LED is another practical advantage. A right angle LED tact button switch can provide clear visual indication when the equipment is operating or when a particular button needs to be located.

This feature is useful in automotive control panels, audio equipment, broadcast consoles, industrial controls, and other applications where switches may need to be operated in low-light conditions. Different LED colors can also be used to distinguish between functions.

5. Easy PCB Installation

Right-angle terminals make these switches convenient for PCB designs where the switch needs to face sideways rather than vertically. Depending on the model, manufacturers can choose through-hole or other PCB mounting configurations to match their production process.

For high-volume production, choosing a switch that fits the PCB layout correctly from the beginning can also help simplify assembly and reduce unnecessary design changes.

6. Cost-Effective Choice for Electronic Products

A LED illuminated tact switch can provide both switching and indication in one compact component. Instead of adding a separate indicator and switch, an illuminated tact switch can combine these functions while keeping the control panel clean and simple.

For manufacturers working with consumer electronics, control equipment, audio products, automotive electronics, and industrial devices, this can be an attractive solution when both performance and cost need to be considered.

A Practical Switch for Modern Control Panels

Right angle illuminated tact switches bring several useful features together: tactile feedback, compact PCB installation, LED indication, reliable operation, and flexible design options. They are especially suitable for products where the switch must be mounted at the edge or side of the PCB.

For engineers and buyers looking for a compact illuminated switch, choosing the right specification is important. LED color, mounting type, operating force, switch size and terminal  should all be considered before production.

If you are looking for a right angle illuminated tact switch for your next electronic product, contact a professional manufacturer to discuss the required size, LED color, mounting style, and customization options. The right switch can make the final product easier to operate while keeping the PCB design compact and practical.
