How Many Kinds of Illuminated Tact Switch Are Available on the Market

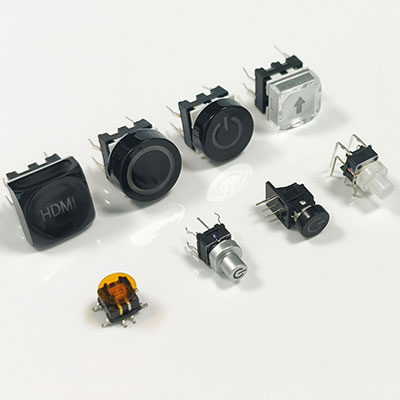

LED tact switches are widely used in electronic equipment where both tactile feedback and visual indication are needed. They are compact, easy to operate, and available in different sizes, LED colors, mounting styles, and electrical configurations. Choosing the right one depends mainly on how the switch will be used and what the product needs.

Before selecting an illuminated tact switch, it is important to look at the LED type, cap size, mounting method, size and operating requirements.

1. Choose the Right LED Type: One of the first things to consider is the illumination.

Single-color LED tact switches use one LED color, such as red, green, blue, or white. They are a practical choice when the switch only needs to provide a simple status indication.

Bi-color LED tact switches use two colors in one switch. They can be used to show different operating conditions, such as standby and active, normal and warning, or power on and off.

RGB LED tact switches offer a wider range of colors and are suitable for products that need more visual feedback. They are often found in gaming equipment, audio devices, control panels, keyboards, and other electronic products. You can refer to our TS7 series.

The choice of LED color should match the function of the product rather than simply the appearance.

2. Check the Switch Function: The switch function is another important point when choosing an LED tact switch.

A momentary tact switch works only while the button is being pressed. Once the pressure is released, the switch returns to its original position. This type is commonly used for keypads, control panels, audio equipment, and electronic controls.

For applications that need the switch to remain in a selected state, a latching switch may be more suitable.

Make sure the switch function matches the circuit and operating method of the equipment before placing an order.

3. Select the Correct Mounting Type: LED tact switches are available with different terminal and mounting options.

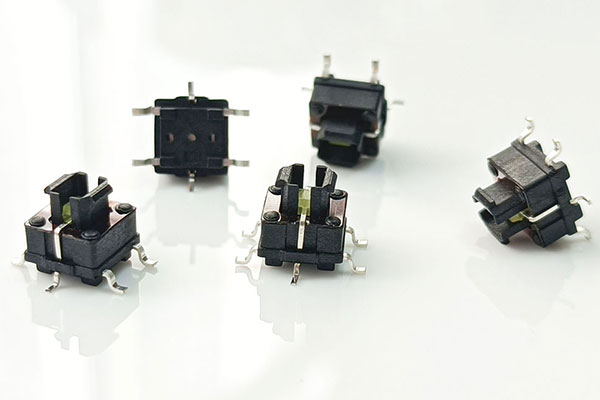

SMD or SMT tact switches are mounted directly onto the surface of the PCB. They are suitable for compact electronic products and automated PCB assembly.

Through-hole tact switches have terminals that pass through holes in the PCB. They can provide a firm mechanical connection and are useful when the switch needs additional stability.

The PCB design and assembly process should be considered before choosing between surface mount and through-hole versions.

4. Consider the Switch Size and Cap

Space inside the product can affect which tact switch you can use. Common sizes include 6×6 mm and 7×7 mm, while some illuminated models are available in larger sizes.

The button cap also affects the appearance and user experience. Round, square, clear, and customized caps can be selected depending on the product design. A transparent cap can help the LED light appear brighter and more visible.

5. Check Electrical and Operating Specifications

Don't choose a switch based on size and LED color alone. Check the electrical specifications, including contact rating, voltage, current, insulation resistance, and dielectric strength.

It is also worth checking the operating force and expected electrical and mechanical life. For equipment that is used frequently, a suitable operating life can help improve long-term reliability.

6. Think About the Application

Different products have different requirements.

For audio and video equipment, a compact illuminated tact switch can provide both button control and clear status indication. For control panels and industrial equipment, stronger illumination or specific mounting requirements may be more important.

In keyboards, gaming equipment, and consumer electronics, RGB or bi-color LED tact switches can add visual feedback while keeping the control panel compact.

For PCB-based products with limited installation space, SMD LED tact switches are often a convenient choice, while through-hole versions may be preferred when mechanical strength is a priority.

Final Tips for Buying LED Tact Switches

The best LED tact switch is not necessarily the one with the most features. Start with the basic requirements of your product: switch size, LED color, switch function, mounting method, cap size, operating force, and PCB layout.

If you need a special LED color, cap design, terminal configuration, or other specifications, check whether the manufacturer offers OEM or customized options.

A suitable illuminated tact switch can provide reliable switching, clear visual feedback, and a better user experience without taking up much space on the PCB.
