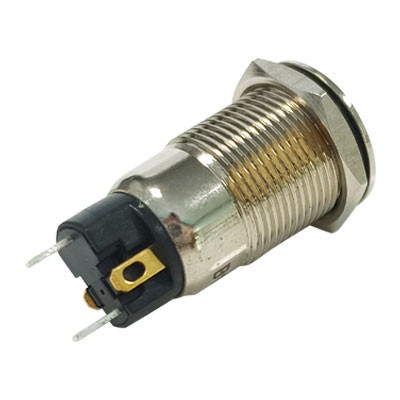

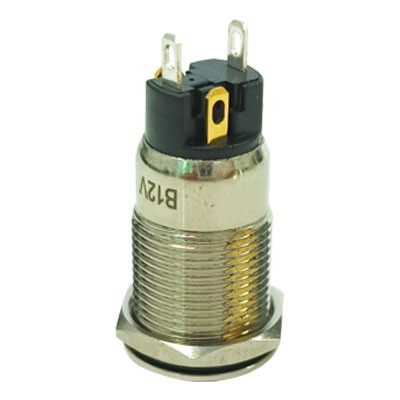

12mm Power Metal Push Button

12mm Power Metal Push Button - Compact 12mm cut-out size designed for reliable power control, with durable construction and easy panel mounting.

 A 12mm metal power push button is a compact, rugged switch designed to fit into a 12mm mounting panel hole. These switches are popular for automotive modifications, marine dashboards, industrial controls, and custom PC power buttons because of their durability and sleek look.

Quick Facts

Key Specifications to Consider

When choosing your 12mm metal push button, you need to decide between two main options based on your wiring design:

1. Operation Type:

Momentary (Self-Resetting): The circuit stays active only while you hold the button down (e.g., a car horn or a PC power switch).

Latching (Self-Locking): The button clicks and stays in place when pressed, keeping the circuit active until you press it again to turn it off (e.g., a light switch or a main toggle).

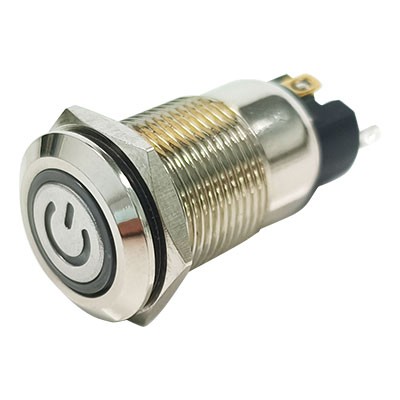

2. LED Illumination:

Many power buttons feature a built-in LED ring or a universal power symbol. Make sure to match the LED voltage rating (commonly 12V for automotive or 3V-6V for electronics) to your power source.

3. Waterproof Rating:

Most variations offer an IP65 or IP66 rating, making them resistant to dust and water splashes—perfect for outdoor or wet environments.

 Product Advantages

The main advantage of this Metal Push Button Switch Ring LED is that it combines switching and indication in one compact panel component. Customers do not need to install a separate indicator next to the push button, which can help simplify the control panel design.

The metal body also provides a stronger and more refined appearance, making the switch suitable for professional equipment where both durability and appearance matter. The illuminated ring gives operators immediate visual feedback and makes frequently used controls easier to identify.

For equipment manufacturers, the 12mm cut-out format offers a practical balance between panel space and button visibility. The switch is suitable for audio and video equipment, broadcast consoles, industrial control panels, security systems, automation equipment, arcade machines, and other electronic control devices.
