SMT Tact Switch

An LED SMT Tact Switch is a specialized switch designed for surface mount technology (SMT), providing tactile feedback and integrated LED illumination. These switches are commonly used in modern electronic devices where space efficiency, visual indication, and reliable user feedback are essential.

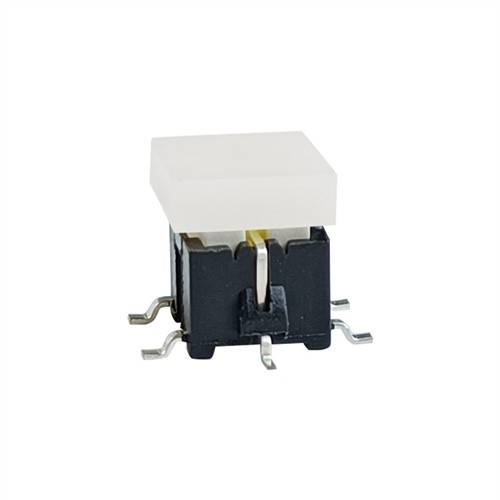

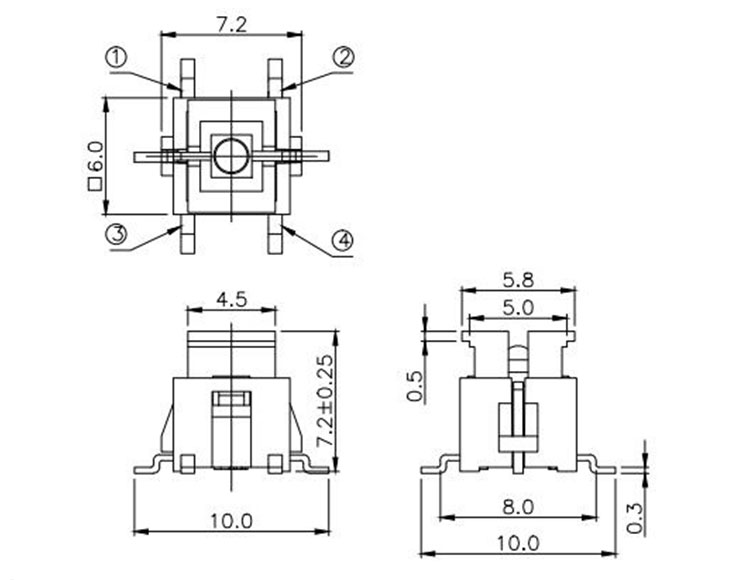

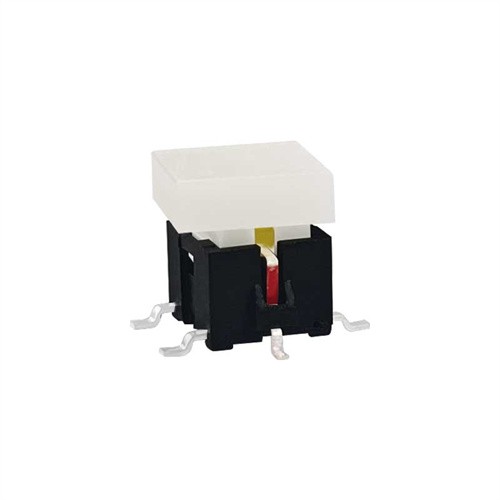

The 6mm*6mm illuminated LED SMT tact switch is a small, surface-mount switch that is designed for use in a wide range of applications. Its compact size makes it ideal for use in applications where space is limited or where a smaller button is required. It features a built-in LED that illuminates when the switch is activated, making it ideal for use in applications where visual feedback is required. The LED can be red, green, yellow, blue, white or bi-color.

Surface Mount Device (SMD) illuminated tactile switches with white LEDs are innovative electronic components that offer tactile feedback and illumination in a compact and surface-mountable package. These switches find widespread use in various electronic devices and equipment where user interface functionality and visual indication are essential.

SMD tact switches with white LEDs offer a versatile and reliable solution for user interface controls in electronic devices and equipment. Their combination of tactile feedback, bright LED illumination, compact design, and customization options makes them suitable for a wide range of applications across various industries. By understanding their features, benefits, applications, and technical specifications, designers and engineers can effectively integrate these switches into their product designs to enhance user experience and functionality.

1. Surface Mount Technology (SMT)

The SMT design allows the switch to be directly mounted on the surface of a printed circuit board (PCB), using automated manufacturing processes. This provides several advantages:

• Compact Design: The surface mount feature allows for a smaller, low-profile switch that takes up minimal space on the PCB, making it ideal for compact or high-density layouts.

• Efficient Installation: SMT enables faster production and assembly, reducing labor costs and production time since these switches can be placed by pick-and-place machines.

• Reliable Performance: Surface mount connections are generally more durable and resistant to vibrations, making these switches well-suited for applications in automotive, industrial, and portable devices.

2. Integrated LED Illumination

One of the key features of the LED SMT tact switch is the built-in LED that provides visual feedback. The LED can illuminate in various colors (e.g., red, green, blue), which serves several important purposes:

• Status Indication: The LED can indicate the operational status of the device, providing users with immediate visual cues such as power on/off or active/inactive modes.

• User Guidance: The illuminated switch enhances the user experience by making it easier to locate and activate the switch, particularly in low-light environments.

• Aesthetic Appeal: The LED adds a sleek, modern look to devices, enhancing the visual design of products such as consumer electronics or automotive interfaces.

3. Tactile Feedback

Like all tactile switches, the LED SMT tact switch provides a click or snap when pressed, giving users physical confirmation that their input has been registered. This tactile feedback is critical in applications that require precision and reliability, such as control panels, remote controls, and handheld devices.

4. Compact and Durable

The combination of SMT and integrated LED makes the switch space-efficient, allowing it to fit into small, compact devices without compromising performance. Additionally, LED SMT tact switches are built for durability, often rated for thousands of cycles, ensuring longevity even in high-use environments.
