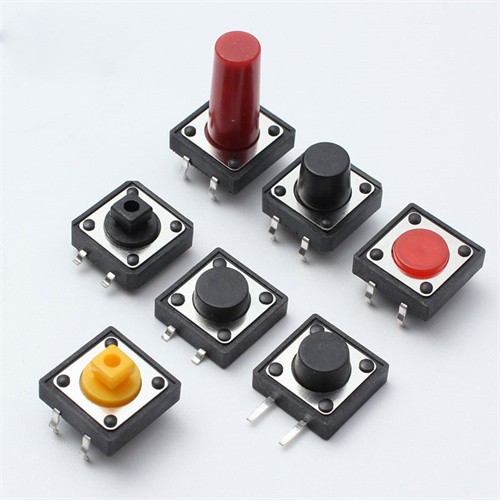

12x12 Tact Switch

When a PCB needs a button that can be pressed directly by the user, a 12x12 tact switch is often a practical option. The larger 12x12mm footprint gives designers a little more room around the actuator than smaller tact switches, which can be useful when several buttons are arranged on the same control board.

The mounting method should be checked before the switch is selected. Depending on the product design, a 12x12 tact switch can be supplied in different terminal and mounting configurations. Through-hole versions are inserted into the PCB and soldered through the board, while SMT versions are placed on the PCB surface. For automated assembly, the SMT type can fit naturally into a surface-mount production process. The PCB footprint, terminal spacing, and overall switch height should be matched with the existing board layout.

Choose the Button According to the Way It Is Used

The actuator is one of the details that directly affects operation. A round actuator gives a concentrated pressing point, while other actuator shapes can provide a different operating feel or match a particular panel design. The height of the actuator is also important when the switch is used with a separate button cap.

For equipment operated frequently, the tactile response deserves attention. A clear click allows the operator to know that the switch has been activated without having to look at the PCB or display. Operating force should also be considered. A switch that is too light may be pressed accidentally, while excessive force can make repeated operation uncomfortable.

Where Can It Be Used?

A 12x12 tact switch can be used in many electronic products, including audio equipment, control panels, measuring devices, industrial controls, communication equipment, security systems, and consumer electronics. It works well for functions such as reset, mode selection, menu control, start input, and other momentary operations.

What Buyers Should Check

For procurement, the cheapest unit price is not always the best choice. The switch should first match the PCB design and electrical requirements. Check the 12x12mm body size, mounting method, terminal layout, actuator height, operating force, travel and expected operating life before confirming an order.

It is also useful to ask about sample availability and production consistency. This allows engineers to test the actual pressing feel and PCB fit before moving to volume production.

Rucoe Supply Advantage

Rucoe has more than 12 years of experience manufacturing tact switches and supports different switch sizes, mounting styles, actuator designs, and electrical configurations. For customers with a specific PCB or enclosure requirement, Rucoe can discuss OEM and ODM options instead of forcing the project to use a standard model.

Sample support is available for product testing, while production inspection helps keep dimensions and switching performance consistent between batches. For B2B customers, this can make a difference when the same switch needs to be supplied for ongoing production.
