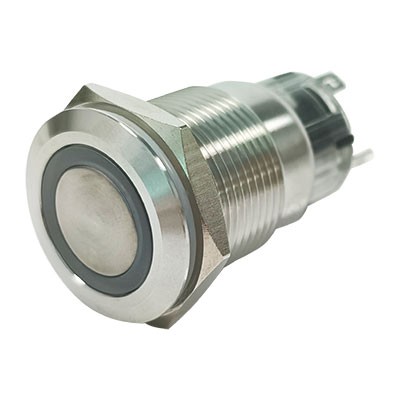

19MM Ring Metal Push Button Switch

19MM Ring Metal Push Button Switch - ideal for durable panel control and clear LED status indication.

The Rucoe Metal Push Button Switch with Ring LED is designed for equipment that needs both reliable switching and clear visual indication. With a 19mm cut-out size, it is suitable for standard panel mounting and offers a steady, beautiful appearance on control panels and electronic equipment.

Product Specification

Product Dimension

Product Selling Points

1. 19mm Standard Panel Cut-Out

The 19mm metal push button switch is designed for applications where a larger and more robust panel switch is required. The standard cut-out size makes it easier for engineers to plan the panel layout and integrate the switch into existing equipment designs.

2. Integrated Ring LED Indicator

The built-in ring LED provides a clear visual indication of the switch status or equipment operating condition. Compared with a standard non-illuminated push button, the LED ring makes the control interface easier to understand, especially in low-light environments.

3. Strong Metal Construction

The metal housing provides a solid and premium feel during operation. It is suitable for equipment that is frequently operated or requires a more durable switch compared with ordinary plastic push buttons. The metal construction also gives the finished product a professional appearance.

4. Momentary and Latching Options

Different equipment requires different switching functions. Rucoe can provide both momentary push button switches and latching push button switches, allowing customers to select the function according to their circuit design.

A momentary version returns to its original position after the button is released, while a latching version remains in its switched position until it is pressed again.

5. Suitable for Control Panels

The 19mm panel-mount design is well suited to control interfaces where the operator needs a clear and easy-to-access button. It can be used for power control, function selection, signal activation, menu operation, and other control functions.

6. Multiple LED Colors

Different LED colors can be used to represent different equipment conditions. For example, red can indicate an alarm or stop condition, while green can represent normal operation. Blue or white can be used for function indication or decorative panel lighting.

7. Flexible Customization

For OEM and ODM projects, Rucoe can customize important switch specifications based on the customer's equipment requirements. Options can include LED color, operating function, voltage, terminal configuration, actuator style, housing finish, and customized symbols or logos.

For projects requiring different specifications, Rucoe can provide customized solutions and factory-direct support, helping customers select the appropriate switch function, LED configuration, mounting style, and electrical specifications for their application
