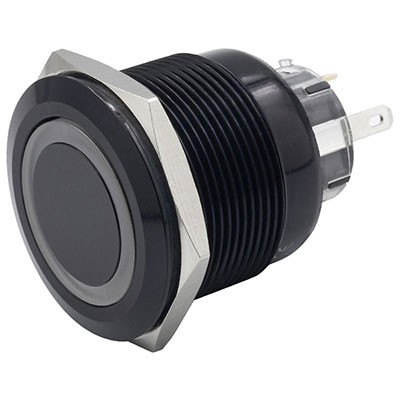

25MM Metal Push Button Switch

The 25mm Metal Push Button Switch, characterized by its black housing and robust locking mechanism, is a high-performance, heavy-duty metal switch meticulously engineered for applications in industrial control systems, commercial equipment, and heavy machinery. It is particularly well-suited for scenarios that demand distinct operational feedback, enhanced protection against inadvertent activation, and aesthetic congruence with dark-colored control panels.

Constructed from 304-grade stainless steel and finished with a professional black oxide treatment, the switch housing offers an optimal balance between durability and visual elegance. The black coating is subjected to high-temperature curing, endowing it with exceptional resistance to scratches, oil stains, and fading. This coating effectively conceals minor abrasions, ensuring the switch maintains a pristine appearance even in high-traffic environments such as factory workshops and commercial kitchen facilities. The metal structure, with a 1.2mm wall thickness, provides enhanced impact resistance, enabling it to withstand accidental collisions without deformation.

With a 25mm hole diameter, this switch is designed to fit standard large-sized control panel apertures, which is larger than the common 22mm models. This makes it an ideal choice for equipment that requires larger operation contacts, such as heavy machinery where operators may be wearing gloves. The installation process is tool-free; simply insert the base into the 25mm aperture, tighten the locknut, and complete the wiring. This eliminates the need for adapters, reducing setup time by 30% compared to non-standard switches.

The switch's core locking mechanism features a "press-to-lock, press-again-to-unlock" design, incorporating metal internal latches that remain securely engaged even under significant vibration, as encountered in construction machinery. This design effectively prevents accidental power switching, thereby minimizing the risk of equipment downtime and potential safety hazards. The button's stroke length of 1.8-2.2mm and a pressing force of 5-7N provide distinct tactile feedback, allowing users to confirm the locking status by touch alone—a crucial feature in noisy industrial settings.
