3-position slide switches are also used in electronic devices to enable or disable certain features or functions

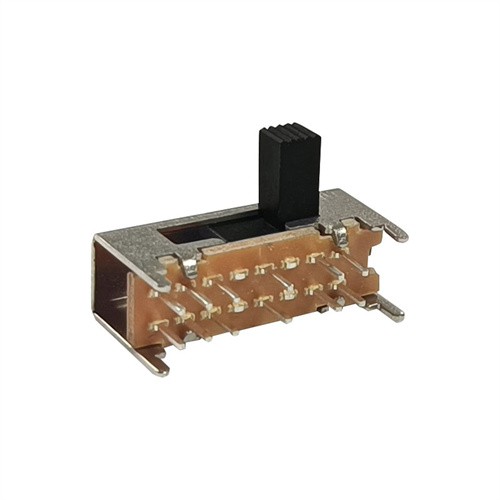

A 3-position slide switch is a type of switch commonly used in electronic circuits to select between multiple options or modes. It features a slider that moves back and forth between three positions, each corresponding to a different circuit configuration. The switch has typically three terminals, one common terminal and two output terminals. The common terminal is connected to the slider while the output terminals are connected to each side of the slider. When the slider is moved to one of the output terminals, it connects the common terminal to that side of the circuit, while disconnecting it from the other side.
One of the most common applications of 3-position slide switches is in audio and musical equipment. The switch can be used to select between different sources or settings, such as different pickups or filters. For example, in an electric guitar, the switch can be used to select between the neck, bridge or both pickups, or to switch between single coil and humbucking modes. In a synthesizer, the switch can be used to select between different waveforms or filters.
Another common use of 3-position slide switches is in lighting systems, where they are used to switch between different light modes or intensities. For example, in a flashlight, the switch can be used to select between high, low, or strobe modes. In automotive lighting, the switch can be used to switch between high beam and low beam modes, or to activate fog lights or auxiliary lights.
3-position slide switches are also used in electronic devices to enable or disable certain features or functions. For example, in a wireless speaker, the switch can be used to turn on and off the Bluetooth mode, or to select between different input sources. In a power supply, the switch can be used to switch between different output voltages or current limits, depending on the requirements of the device being powered.
In conclusion, the 3-position slide switch is a versatile and widely used electronic component that offers a simple and reliable solution for selecting between multiple options or modes. Its compact size, low cost and ease of use make it a popular choice for a wide range of applications in electronics, audio, lighting, and power systems.
