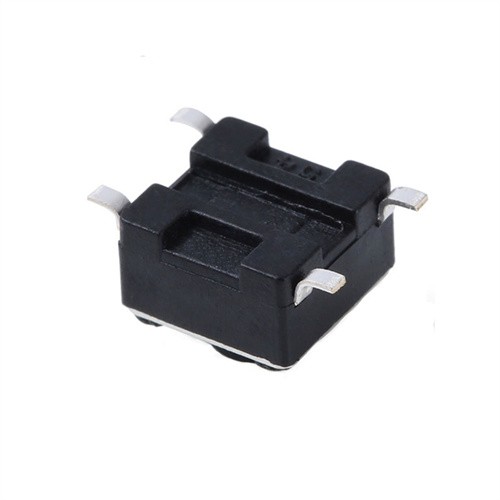

6x6mm SMD Tact Switch

SMD (Surface Mount Device) tact switches are electronic components that are designed to provide a momentary contact for a variety of electronic devices.

SMD (Surface Mount Device) tact switches are electronic components that are designed to provide a momentary contact for a variety of electronic devices. They are widely used in applications such as consumer electronics, medical devices, automotive electronics, and industrial machinery. SMD tact switches are available in a wide range of sizes and specifications to suit various applications. In this article, we will focus on the 6x6mm SMD tact switch.

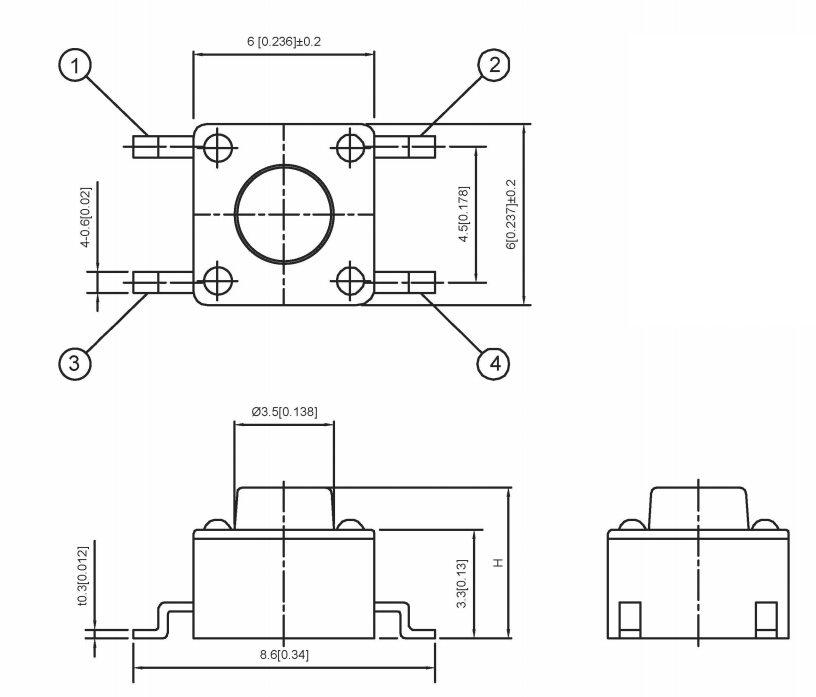

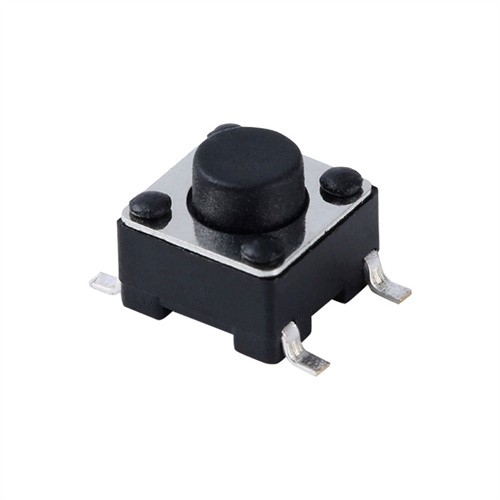

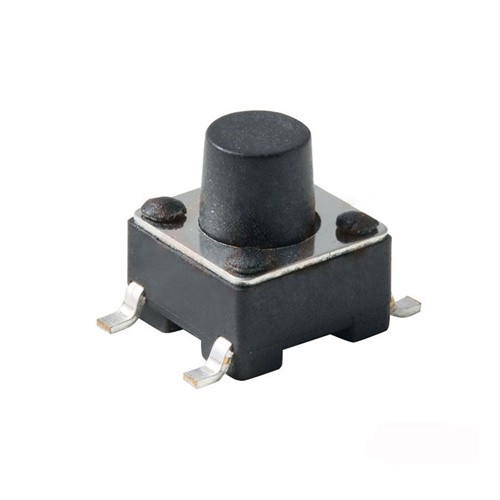

The 6x6mm tact switch represents a significant advancement in electronic component design, offering a unique combination of compact size and expanded functionality. Measuring 6x6mm, this switch is perfectly suited for modern, space - constrained electronic devices, while its four - pin configuration opens the door to a range of advanced features.

The SMT design of this tact switch provides numerous benefits right from the start. SMT technology enables precise and automated placement on printed circuit boards (PCBs), streamlining the manufacturing process and reducing the margin of error. This precision is crucial for densely packed PCBs in devices like smartphones, tablets, and wearable electronics, where every millimeter of space matters. The 6x6mm footprint allows for easy integration without sacrificing valuable real - estate on the board.

Compact and Space-Saving Design

Measuring just 6x6mm, this tact switch is ideal for designs where space is limited. Its low-profile construction allows for efficient integration into slim or portable devices such as remote controls, handheld meters, wearable tech, and compact audio gear. The surface-mount technology (SMT) design enables automatic placement during PCB assembly, streamlining production and ensuring consistent alignment and soldering quality.

Surface-Mount Technology (SMT)

The SMT configuration is especially beneficial for high-volume manufacturing. Unlike through-hole components, mini tact push button switches are mounted directly onto the surface of the PCB, reducing the need for drilling and minimizing board real estate usage. This also improves mechanical performance in environments where vibration resistance and board stress are concerns. Moreover, SMT-compatible switches facilitate better thermal performance and electrical characteristics in fast-switching applications.

Reliable 4-Pin Configuration

The 4-pin layout of the low profile tact switchprovides excellent mechanical stability on the PCB. This design helps prevent lifting or movement during soldering and operation. Additionally, the dual-contact nature of the 4-pin configuration ensures consistent electrical performance, reducing the risk of contact bounce or failure over time. This is particularly important in applications where reliable actuation feedback and longevity are critical.

Performance and Durability

These switches typically offer a tactile feedback force ranging from 160gf to 260gf, providing a distinct and satisfying click that users can feel and hear. They are engineered to withstand tens of thousands of actuations, making them suitable for repeated use over extended periods. Gold or silver-plated contacts may be available in higher-end models, enhancing conductivity and corrosion resistance.

Versatile Applications

Due to their durability, compact size, and ease of installation, 6x6mm SMT tact switches are used in a wide range of electronic products. They are commonly found in:
