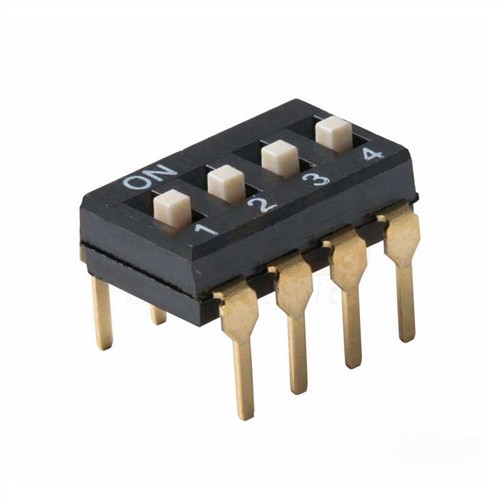

DIP Switch 2.45MM

the 2.45MM DIP switch is a versatile electronic component that can be used in a wide range of electronic devices.

EMAIL

A DIP (dual inline package) switch is a manual electronic component used to connect or disconnect electronic circuits on printed circuit boards (PCBs). DIP switches are small in size and usually have a rectangular shape, and each switch typically has two states: ON or OFF. DIP switches are common in electronic devices such as modems, routers, and robotic systems.

One example of a DIP switch is the 2.45MM DIP Switch. This switch is a surface-mount DIP switch and features a compact design for high-density mounting. The 2.45MM DIP switch is also available in both single and dual-row configurations, and its contact design ensures high contact reliability.

The 2.45MM DIP switch has a maximum operating voltage of 24V DC and a maximum operating temperature of 85 degrees Celsius. The switch has a rated current of 25 mA and a contact resistance of 100mΩ at 10mA. The contacts of the switch are gold plated, which provides good electrical conductivity and prevents corrosion.

The 2.45MM DIP switch can be customized with different actuator styles, including flush, extended, or recessed. The switch is also available in different configurations, including 1 to 12 poles and 2 to 24 positions. The switch is typically controlled by a small gear or lever that can be easily moved by hand.

When designing a PCB, engineers often use DIP switches to create circuits with selectable options. For example, a modem may have a DIP switch that allows users to choose between different signal strengths or frequencies.

In conclusion, the 2.45MM DIP switch is a versatile electronic component that can be used in a wide range of electronic devices. The switch's compact design, high contact reliability, and customization options make it a popular choice for engineers and hobbyists alike.

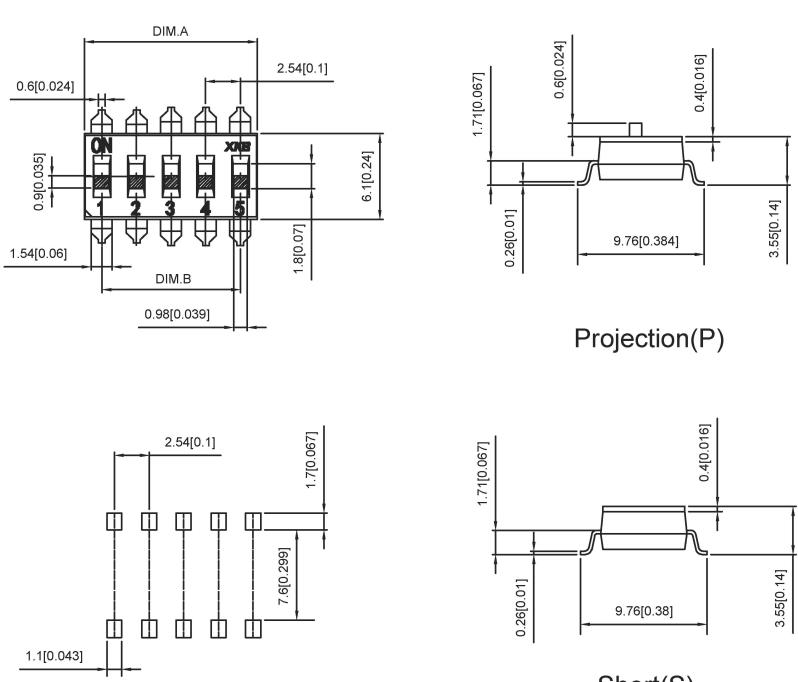

PRODUCT DIMENSION


PRODUCT CATEGORY

illuminated Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.
