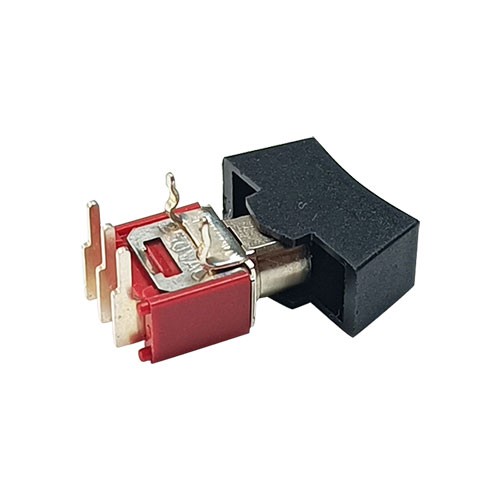

Lever Toggle Switch

Subminiature ON-ON toggle switches are rated by the amount of current they can handle. This rating is referred to as the switch's "current carrying capacity." When selecting a switch, it is important to ensure that its current carrying capacity is sufficient for the application in which it will be used. Other factors to consider when selecting a subminiature ON-ON toggle switch include the voltage rating, operating temperature range, and environmental factors like humidity and shock/vibration.

The ON - ON toggle switch is a type of electrical switch that offers two distinct “on” positions, rather than the typical on - off configuration. This unique design provides enhanced functionality and flexibility for various electrical setups.

Structurally, it features a toggle lever that can be moved to either of the two “on” positions, each corresponding to a different electrical circuit connection. Inside, the switch contains specific contact arrangements that ensure stable electrical connections when the lever is in either “on” state. The contacts are made from durable materials, such as silver or copper alloys, to minimize electrical resistance and ensure reliable performance over time.

This type of toggle switch finds wide - ranging applications. In automotive lighting systems, an ON - ON toggle switch can be used to control two separate sets of lights, like fog lights and auxiliary driving lights, allowing the driver to activate either set as needed. In audio equipment, it can be employed to switch between different input sources or amplifier channels. In industrial control panels, ON - ON toggle switches are useful for managing two different operating modes of a machine or for controlling two independent functions within a system. Their ability to provide two active states makes them a valuable choice for scenarios where multiple circuits need to be selectively powered or controlled, offering more versatility compared to standard on - off switches
