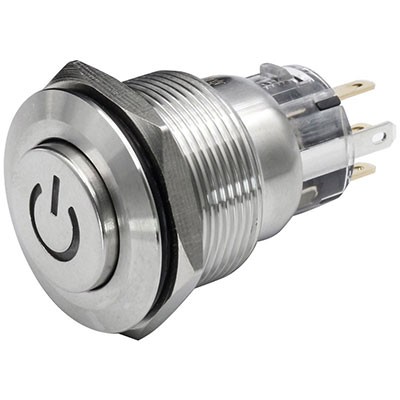

Metal Push Button Switch With Power

This 22mm high-head metal push button switch, specifically designed for 12V DC systems, is a standout choice for industrial equipment, automotive power controls, and emergency devices. Its distinctive high-head profile and clearly marked power logo ensure intuitive operation, which is crucial in scenarios demanding quick responses.

Premium Build Quality

Constructed from 304 stainless steel, the switch housing—including the high-head component—is precision-machined using CNC technology. The high head extends 5-7mm above the control panel, featuring a robust 1.2mm-thick structure that effectively withstands impacts and resists deformation. A sandblasted surface finish enhances its anti-fingerprint and anti-corrosion properties, guaranteeing reliable performance even in challenging, dusty, or oily environments.

User-Centric Design

With a standard 22mm hole diameter, the switch seamlessly fits into common control panel apertures. Installation is straightforward: simply embed the base and secure it with the provided locknut—no additional adapters required. The high-head design significantly improves usability. The elevated button allows for easy tactile location, even for operators wearing work gloves, and offers distinct tactile feedback (1.6-2.0mm stroke, 4-5N pressing force), minimizing the risk of misoperation often associated with flat-head switches.

Clear Identification

The power logo, laser-engraved for maximum durability, is prominently displayed on the top of the high head. Resistant to wear and fading, the logo remains legible even after extensive use, enabling users to quickly identify the power control button. This feature is particularly valuable on complex control panels with multiple switches, effectively preventing accidental activation of non-power buttons.

Reliable Electrical Performance

Engineered for 12V DC systems, the switch offers a rated current of up to 10A, an insulation resistance of ≥100MΩ, and a withstand voltage of ≥1500V DC. Its IP65 protection rating, achieved through rubber seals between the high head and housing, provides reliable dust and low-pressure water ingress protection. This makes it an excellent choice for applications such as off-road vehicle power controls or workshop equipment. With an actuation life exceeding 100,000 cycles, this high-head metal push button switch combines intuitive operation, clear identification, and long-term reliability, making it a top-tier solution for 12V DC applications.
