Micro Tact Switch

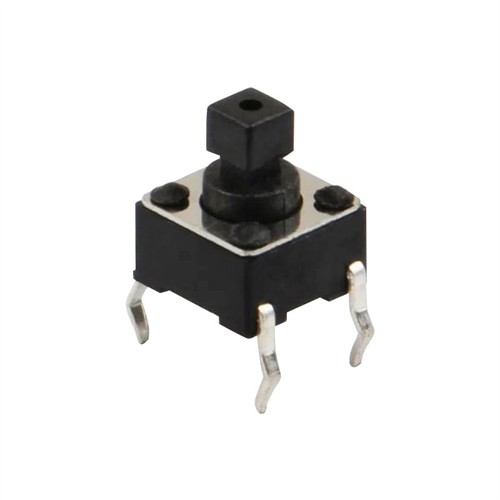

The 6x6x7.5mm DIP tact switch is a compact tactile switch designed for PCB applications where board space is limited but a clear push response is still required. Its 6x6mm footprint makes it suitable for compact control boards, while the 7.5mm height provides a practical button position for operation through a panel or housing.

For engineers, the main point to check is the PCB mounting method and pin layout. A DIP tact switch uses through-hole terminals, so the pins pass through the PCB and are soldered on the opposite side. This gives the switch a firm mechanical connection and can be useful in equipment that receives frequent button presses or handling.

Compact Size for PCB Design

With a 6x6mm body size, this tact switch takes up relatively little PCB space. The 7.5mm overall height should also be considered when designing the enclosure, especially when the switch is paired with an external button cap.

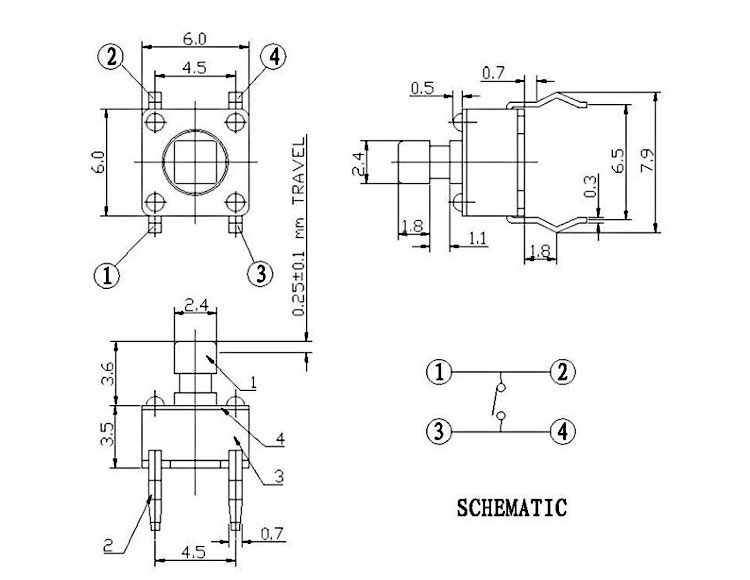

The actuator can be matched with different cap styles depending on the required button height and operating feel. Before ordering, engineers should confirm the actuator dimensions, terminal spacing, PCB hole pattern, and total switch height against the PCB footprint.

Clear Tactile Feedback

A major reason to use a 6x6x7.5mm DIP tact switch is its tactile response. When pressed, the internal contact mechanism provides a noticeable click, giving the operator clear feedback that the switch has been activated.

This makes it suitable for control functions where the user needs to distinguish each press, such as audio equipment, control panels, electronic instruments, measuring equipment, and consumer electronics.

Why Buyers Consider This Type

For purchasing teams, a small DIP tact switch can be useful when the product needs a simple, reliable mechanical button without taking up much PCB area. Through-hole construction is also convenient for designs that require stronger PCB retention than a surface-mount component.

When selecting a 6x6x7.5mm model, buyers should compare operating force, travel, electrical rating, terminal configuration, actuator style, and expected operating life. These specifications can vary between models, so the datasheet should be checked before mass production.
