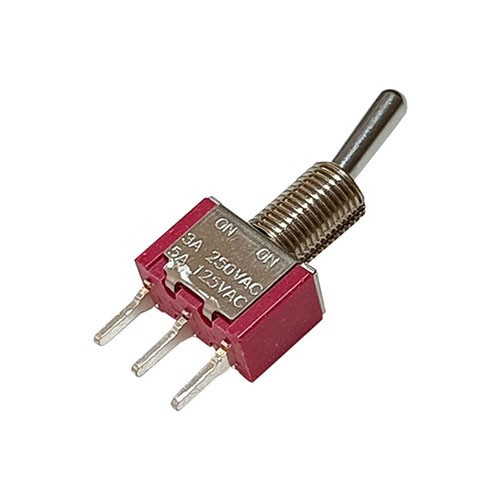

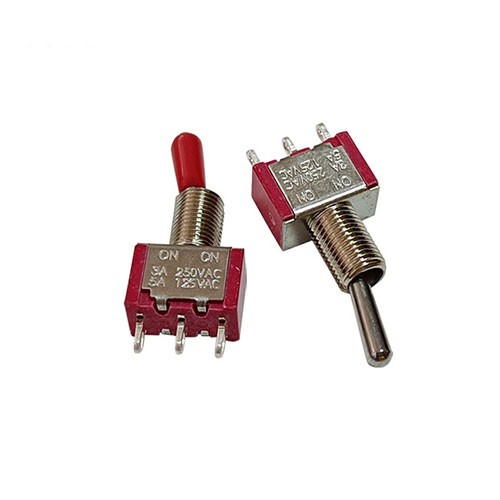

A 3-pin toggle switch is easy to install and use. Its pins are usually marked as "C" (common), "NO" (normally open), and "NC" (normally closed)
A toggle switch is a type of electrical switch that is widely used in many different applications. It is called a toggle switch because it can be switched on and off by using a toggle that moves back and forth. This movement opens or closes the circuit that the switch is connected to. A 3-pin toggle switch is a type of switch that has three wires or pins. These pins are used to connect the switch to the electrical circuit that it serves.
A 3-pin toggle switch is easy to install and use. Its pins are usually marked as "C" (common), "NO" (normally open), and "NC" (normally closed). The "C" pin is the common pin and is used to connect the switch to the circuit. The "NO" pin is the normally open pin and is used to connect the circuit when the switch is in the on position. The "NC" pin is the normally closed pin and is used to connect the circuit when the switch is in the off position.
When choosing a 3-pin toggle switch, it is important to consider its rating. The rating of a switch refers to its ability to handle the electrical current that flows through it. A switch with a higher rating can handle more current and is therefore more suitable for heavy-duty applications. On the other hand, a switch with a lower rating may be suitable for lighter applications.
There are many different types of 3-pin toggle switches available in the market. Some of the most common ones include single-pole single-throw (SPST), single-pole double-throw (SPDT), double-pole single-throw (DPST), and double-pole double-throw (DPDT) switches. Each type of switch has its own advantages and disadvantages.
|Product Item||Toggle Switch|
| Rating||0.1A 12VDC|
| Payment||T/T 100% in advance|
| Delivery||15-20 workdays|
|Shippment||DHL/ FedEx /UPS|
Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.
Applications of Subminiature Toggle Switches
Subminiature toggle switches are used in different electronic devices and circuits. They are particularly useful in applications where small size and low voltage and current are required. Here are some of the common applications:
1. Portable electronic devices
Subminiature toggle switches are ideal for use in portable electronic devices that require small switches. These devices include small-sized radios, calculators, and other small electronic gadgets.
Subminiature toggle switches are also used in small electronic amplifiers that require low voltage and current. These amplifiers are commonly used in small speakers, headphones, and other audio devices.
3. Automotive applications
Subminiature toggle switches can be used in automotive applications such as dashboards, interior lights, and other electronic circuits in cars.
4. Industrial applications
Subminiature toggle switches are used in different industrial applications where small size and low voltage and current are required. These applications include control boxes, small machines, and other electronic circuits.
Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013，our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology
We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.
Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
