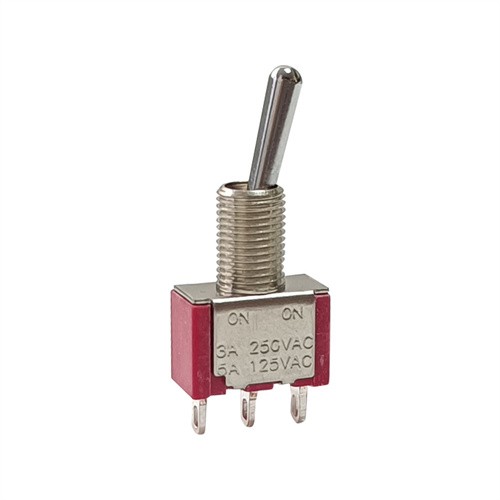

On On Mini Toggle Switch

A micro-mini toggle switch consists of a lever or handle that is connected to an internal metal switch mechanism


An ON-ON mini toggle switch is a type of switch that is commonly used in electrical and electronic circuits to turn on or off different components of the circuit. It is a small, compact switch that can be easily mounted on a printed circuit board or a panel with a mounting hole.

The ON-ON mini toggle switch is a double-pole, double-throw (DPDT) switch, which means it has two independent pairs of contacts that can be switched between two output states. Each pair of contacts is called a pole, and the switch has two poles, hence the name DPDT. The switch has three positions, and it can be used to connect or disconnect two circuits or components in a circuit.

The three positions of the switch are named On-On, Off-On, and On-Off. In the On-On position, both poles of the switch are connected to their respective outputs, and the circuit is complete. In the Off-On position, one pole is open, and the other pole is connected to its output. This position is commonly used to turn the circuit on or off. Finally, in the On-Off position, one pole is connected to its output, and the other pole is open. This position is used to switch between two components or circuits.

                                         Model                   TG-8019
                                         Product Item                   Toggle Switch
                                         Switch Function                   ON-ON
                                         Stem Options                   Red/Blue/Black/Brown
                                         Type                   Tactile
                                         Function                   Momentary
                   0.1A 12VDC
                   T/T 100% in advance
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS




Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.



Applications of Subminiature Toggle Switches

Subminiature toggle switches are used in different electronic devices and circuits. They are particularly useful in applications where small size and low voltage and current are required. Here are some of the common applications:

1. Portable electronic devices

Subminiature toggle switches are ideal for use in portable electronic devices that require small switches. These devices include small-sized radios, calculators, and other small electronic gadgets.

2. Amplifiers

Subminiature toggle switches are also used in small electronic amplifiers that require low voltage and current. These amplifiers are commonly used in small speakers, headphones, and other audio devices.

3. Automotive applications

Subminiature toggle switches can be used in automotive applications such as dashboards, interior lights, and other electronic circuits in cars.

4. Industrial applications

Subminiature toggle switches are used in different industrial applications where small size and low voltage and current are required. These applications include control boxes, small machines, and other electronic circuits.


Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013,our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology





We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.



Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
