PCB Terminal Block

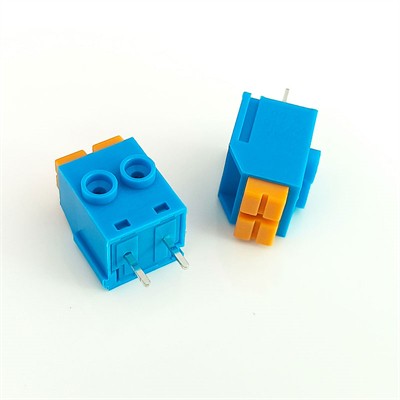

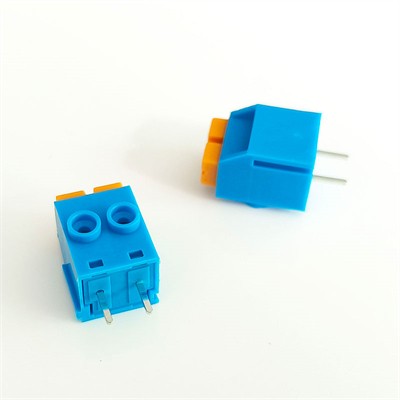

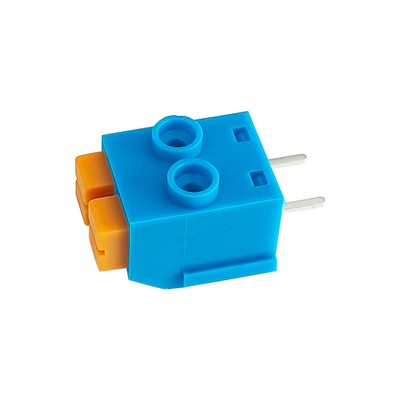

Spring PCB Terminal Block 2 Pin, a compact and efficient solution designed to simplify electrical connections in printed circuit boards (PCBs) with its tool-free operation and quick mounting capabilities. Engineered for reliability and ease of use, this terminal block is ideal for a wide range of applications, including consumer electronics, industrial controls, automotive systems, and IoT devices where space and installation speed are critical.

At the core of its design is the innovative spring-loaded connection mechanism, which eliminates the need for screws or additional tools during wiring. Simply insert the stripped wire into the terminal slot, and the built-in spring securely clamps the conductor in place—ensuring a tight, vibration-resistant connection that minimizes the risk of loose wires or signal loss. This tool-free feature not only speeds up installation but also reduces the risk of human error during assembly, making it perfect for both automated production lines and manual DIY projects.

The 2-pin configuration is optimized for simple, dual-circuit connections, providing a straightforward solution for power supply, signal transmission, or sensor integration in PCBs. Its compact form factor saves valuable board space, allowing for denser component layouts without compromising on connection quality. Whether used in small handheld devices or larger industrial control panels, the terminal block’s low-profile design ensures seamless integration into space-constrained environments.

Equipped with quick mounting features, this terminal block simplifies PCB assembly. It supports both through-hole and surface-mount (SMT) installation options, adapting to diverse manufacturing processes and PCB designs. The secure mounting mechanism ensures the terminal block remains firmly in place during operation, even in high-vibration settings such as automotive or industrial equipment.

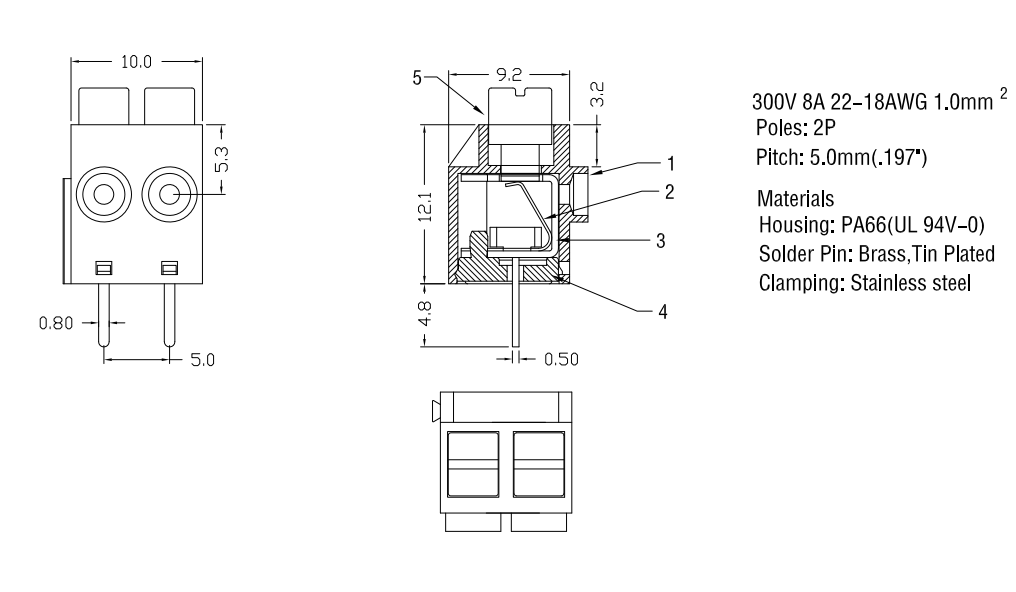

Constructed from high-quality materials, including flame-retardant thermoplastic housing and corrosion-resistant contact components, the terminal block delivers excellent durability and electrical performance. It supports a wide range of wire gauges (typically 22–18 AWG) and is rated for voltages up to 300V and currents up to 10A (varies by model), making it versatile enough for both low-voltage signal lines and moderate-power applications.

In addition to its functional benefits, the terminal block features clear pin labeling and color-coded housing options (where available), enhancing visibility during installation and maintenance. Its robust design also provides basic protection against dust and moisture, ensuring reliable operation in harsh environments.

Whether you're designing consumer electronics, industrial control systems, or smart devices, our Spring PCB Terminal Block 2 Pin combines tool-free convenience, quick mounting, and reliable performance to streamline wiring processes and enhance the longevity of your electrical connections.
