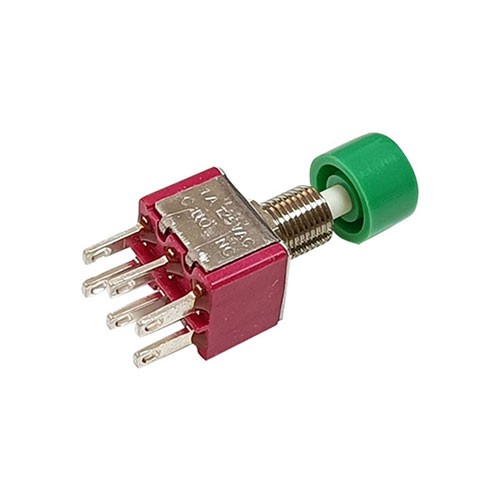

Push Button and Toggle Switch

Toggle switches have been used for a long time, and they are still one of the most common types of switches today

EMAIL

Toggle switches have been used for a long time, and they are still one of the most common types of switches today. These switches come in various configurations, including single-pole single-throw (SPST), double-pole single-throw (DPST), and so on.

A single-pole single-throw (SPST) switch consists of two brass or silver terminals on opposite sides of the switch connected to the power source and the load. When the switch is closed, the terminals are connected, and the current flows. When the switch is open, the terminals are disconnected, and no current flows.

Double-pole single-throw (DPST) switches are commonly used to change the direction of an electric motor. They are designed to control two different circuits simultaneously, such as the current flowing through two different loads.

PRODUCT PROFILE
                                         Model                   TG-P8702-F4BQ-H
                                         Product Item                   Toggle Switch
                                         Switch Function                   ON-ON
                                         Stem Options                   Red/Blue/Black/Brown
                                         Type                   Right Angle
                                         Function                   Momentary
                                         Rating
                   0.1A 12VDC
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS

PRODUCT DIMENSION


PRODUCT CATEGORY

Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.


aPPLICATIONS

Applications of Subminiature Toggle Switches

Subminiature toggle switches are used in different electronic devices and circuits. They are particularly useful in applications where small size and low voltage and current are required. Here are some of the common applications:

1. Portable electronic devices

Subminiature toggle switches are ideal for use in portable electronic devices that require small switches. These devices include small-sized radios, calculators, and other small electronic gadgets.

2. Amplifiers

Subminiature toggle switches are also used in small electronic amplifiers that require low voltage and current. These amplifiers are commonly used in small speakers, headphones, and other audio devices.

3. Automotive applications

Subminiature toggle switches can be used in automotive applications such as dashboards, interior lights, and other electronic circuits in cars.

4. Industrial applications

Subminiature toggle switches are used in different industrial applications where small size and low voltage and current are required. These applications include control boxes, small machines, and other electronic circuits.

cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013,our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology


OUR EXHIBITIONS


EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.


CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
