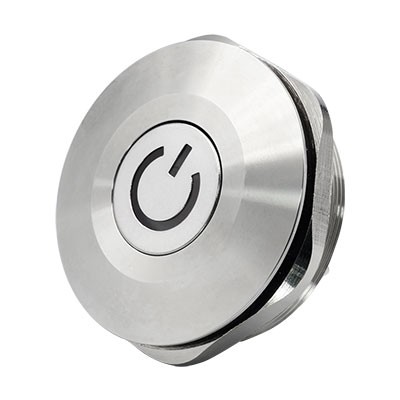

Push Button Switch With Power Logo

The 40mm illuminated power metal push button switch stands as a high-performance variant of metal push button switches, merging rugged construction with intuitive visual guidance to redefine operational reliability in push button switch applications. Engineered for clear power status indication, it has become a staple in systems requiring both durability and user-friendly control.

Crafted from 304 stainless steel or brass with nickel plating , its robust housing resists corrosion and impact, while the Φ40mm standard cut-out size ensures seamless integration into industrial panels . The centerpiece is its illuminated power logo—paired with optional ring LED illumination —offering color options (red, green, blue, etc.) and wide voltage compatibility (3V–220V AC/DC) , with a 50,000-hour LED lifespan ensuring long-term visibility .

Performance is optimized for harsh environments: IP67 waterproof/dustproof rating , IK08-IK10 impact resistance , and an operating temperature range of -25℃ to +85℃ . Electrical specs include 3A–5A rated current , ≤50mΩ contact resistance, and ≥1000MΩ insulation resistance , with mechanical life exceeding 500,000 cycles . It supports both momentary and latching functions , adapting to start/stop or sustained power control needs.

It excels in industrial cabinets, medical equipment, and automotive consoles . For example, red-lit logos mark emergency power buttons in factories, while green indicators signal active power in vending machines . This 40mm metal push button switch unites durability and clarity, elevating the functionality of traditional push button switches.
