Pushbutton Switch 8mm SPST

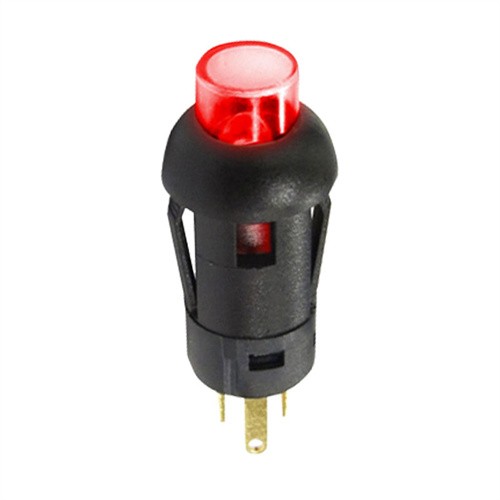

Pushbutton Switch 8mm SPST Momentary 30VDC 100mA Red Illuminated PC Pin


Miniature Push Button Switches 8mm SPST Momentary 30VDC 100mA Red Illuminated PC Pin,

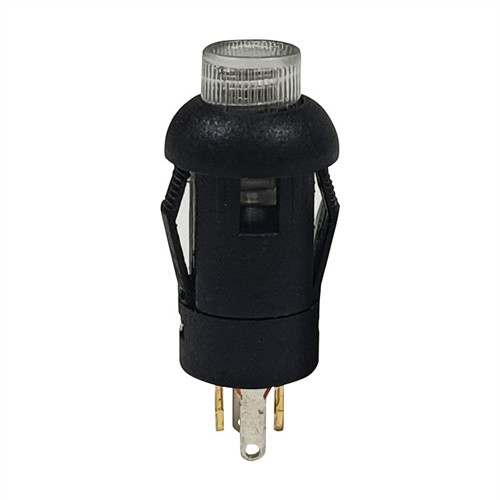

Miniature snap-in push button switches with a total length of 23mm. Available with solid black or illuminated water clear actuator. Illuminated Color variants include blue, green, yellow, white and red. A dual Color version of blue and green is also available Gold plated copper alloy contacts.

The switch type of the pushbuttons determines how it functions. The 8mm SPST momentary red-illuminated pushbuttons are single-pole, single-throw switches, which means that they have two terminals used to connect and disconnect a single circuit. These switches are momentary, which means that they perform a function only when pressed, and when the pressure is released, it returns to its original position.


Illumination is an essential feature of pushbutton switch panels. It helps to indicate the status of the equipment or function controlled by the pushbutton. The 8mm SPST momentary red-illuminated pushbuttons have a built-in LED that illuminates when the button is pressed. This LED improves visibility in low light or dark environments and provides a clear indication of the button's status.

The color of the pushbutton can also be changed to make it more visible or to match the equipment's color scheme. The 8mm SPST momentary red-illuminated pushbuttons are typically red, making them easily recognizable as emergency stop buttons.

Momentary Function:

The momentary function of the pushbutton allows it to be used as a momentary switch, which means that it only performs a function while pressure is applied. Once the pressure is released, the switch returns to its original position. This function is useful when the equipment needs to perform a particular function temporarily, such as starting or stopping a machine.

A pushbutton switch panel with 8mm SPST momentary red-illuminated buttons is a great addition to any electrical or electronic equipment. The cutout size should be 8mm in diameter, and the template can be used for creating perfect cutouts on the panel. The mounting hole size is 8mm, and the overall dimensions depend on the number of pushbuttons required. The 8mm SPST momentary red-illuminated pushbuttons are single-pole, single-throw switches which are momentary when pushed promptly. The illumination feature is useful in dark environments or low light conditions, and the red color is easily visible as an emergency stop button. The momentary function allows the button to perform a function temporarily, making them ideal for various types of equipment.

                                         Model                   PS08-0000R
                                         Product Item                   Push Button Switch
                                         Switch Size                   8.0*mm
                                         Actuator Color                   Black
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Terminal Style
                   T/T 100% in advance
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS
