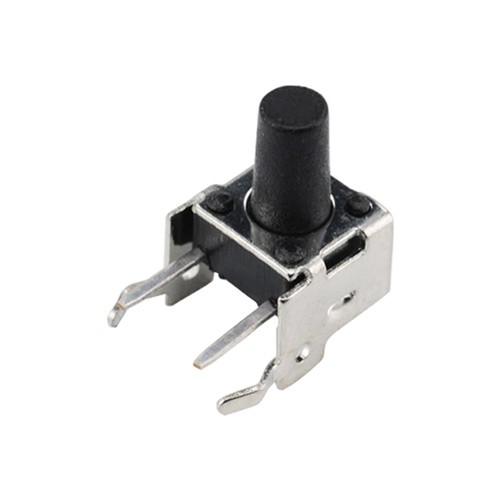

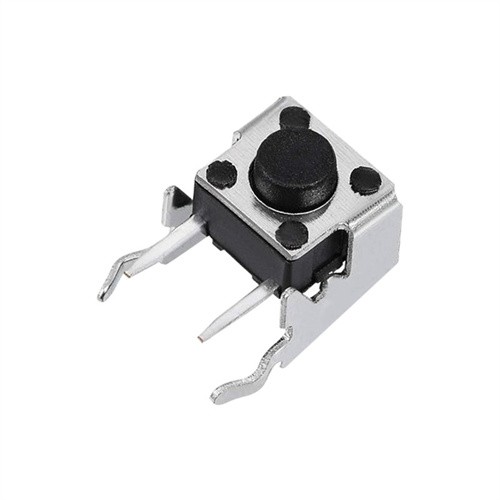

Right Angle Tactile Switch

A right angle tactile switch is designed with its terminals positioned so the switch is mounted horizontally on the PCB rather than standing vertically. This simple change in terminal direction can make a big difference when the available PCB space or button position is limited.

For engineers, the main advantage is flexibility in board and panel layout. A right angle tact switch can place the actuator toward the edge of the PCB, allowing a button on the enclosure or front panel to operate the switch from the side. This is useful when there is not enough vertical space for a conventional tact switch.

Designed for Edge-Mounted Controls

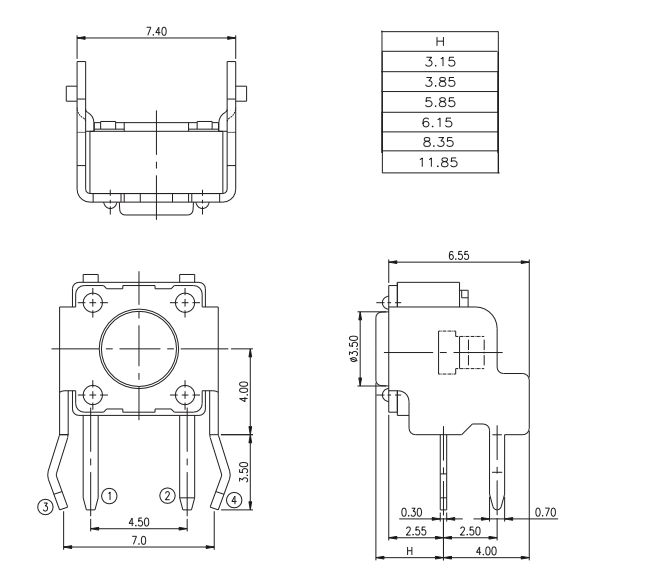

The horizontal installation makes this type of switch suitable for PCB edges and compact control assemblies. Engineers should check the terminal pitch, PCB hole layout, actuator height, and distance from the PCB edge before designing the board.

The actuator position is also important. Depending on the product design, the switch can be combined with different button caps or external actuators. The final button height should match the enclosure so that pressing the external button does not put unnecessary mechanical stress on the switch.

Tactile Feedback for Everyday Controls

Like other tactile switches, a right angle model provides a noticeable click when operated. The operating force and travel determine how the button feels, so these specifications should be selected according to the application.

Typical applications include:

• Audio and video equipment

• Control panels

• Electronic instruments

• Industrial equipment

• Communication devices

• Consumer electronics

• PCB-mounted user interfaces

For equipment with controls located close to the front or side panel, the right angle tactile switch can simplify the mechanical design while keeping the PCB relatively compact.

What Buyers Should Confirm

Before ordering, purchasing teams should compare switch dimensions, mounting method, terminal arrangement, operating force, travel, electrical rating, and mechanical life. If the switch will be used with a custom panel button, actuator dimensions should also be checked.

Rucoe offers different tactile switch configurations, including PCB mounting options and illuminated versions. OEM/ODM customization and sample support can also help engineers test the switch with their actual PCB and housing before moving to volume production.
