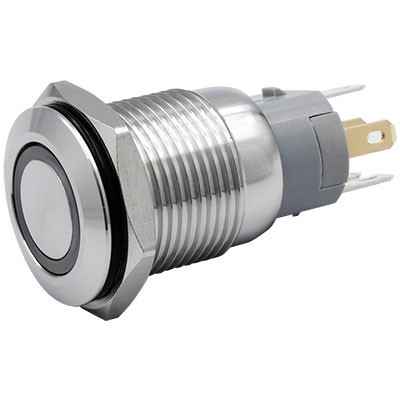

Ring LED Metal Push Button Switch

16mm metal push button switch is panel-mounted with an IP67-rated housing and ring LED indicator. It suits industrial control panels in dusty, wet, or outdoor conditions.

1. Product Introduction

The 16mm IP67 metal push button switch with ring LED is designed for panel-mounted control applications that require clear visual indication and reliable switching operation. It features a stainless steel housing and a circular LED indicator that provides visible status feedback from multiple viewing angles.

With a standard 16mm panel cut-out, this metal push button switch can be installed in compact control panels and equipment housings. The IP67 protection rating helps prevent dust and water from entering the switch when properly installed, making it suitable for indoor and outdoor equipment.

Both momentary and latching operation modes are available to meet different control requirements. LED colors such as red, green, blue and white can be selected, with common LED voltage options including 5V, 12V and 24V.

This switch is suitable for self-service terminals, vending machines, information kiosks, gaming equipment and other industrial control applications.

2. Product Specifications

Note: Specifications, LED configurations and wiring options can be customized according to the selected model. Please confirm the rated electrical load and detailed dimensions before ordering.

3. Product Features

Uniform Ring LED Illumination

The circular LED indicator provides a clear visual signal around the button. Its ring-shaped lighting makes the switch easier to identify from different viewing angles, particularly in dimly lit environments.

Red, green, blue and white LED colors are available to match different equipment status indicators and control panel designs. Common voltage options include 5V, 12V and 24V.

IP67 Waterproof and Dustproof Protection

The IP67-rated design helps protect the switch against dust and temporary water immersion under specified test conditions. It is suitable for equipment exposed to dust, moisture or regular cleaning.

For panel installation, the sealing structure and mounting conditions should be considered to maintain the required protection level.

Momentary and Latching Operation

Two operating modes are available for different control requirements:

• Momentary: The button returns to its original position when released. It is commonly used for start, reset, call and confirmation functions.

• Latching: The button remains in its switched position after being pressed and requires another press to change the state. It is suitable for equipment power or function selection.

The appropriate operation mode can be selected according to the equipment's control circuit.

Stable Electrical Contact

The switch uses silver alloy contacts to support reliable electrical connection during normal operation. The 1NO1NC contact configuration provides normally open and normally closed contact options for different control circuits.

4. Key Advantages for Equipment Manufacturers

Clear operating status: Ring LED illumination helps operators identify button positions and equipment status without relying only on text labels.

Flexible control options: Momentary and latching versions support different equipment operating logic.

Suitable for demanding environments: IP67 protection and stainless steel construction make the switch suitable for equipment exposed to dust and moisture.

Easy panel integration: The standard 16mm mounting size helps simplify panel design and installation.

Flexible configuration: LED colors, voltage options, head styles and wiring arrangements can be selected according to project requirements.

5. Typical Applications

This 16mm metal push button switch is commonly used in self-service and equipment control applications, including:

Vending Machines: Used as product selection, confirmation or function control buttons.

Information Kiosks: Suitable for user interaction, service requests and menu selection.

Gaming and Entertainment Equipment: Provides illuminated control buttons for operation in different lighting conditions.

Self-Service Terminals: Used for start, call, reset and confirmation functions.

Industrial Control Panels: Suitable for compact equipment requiring illuminated panel-mounted controls.

6. About Rucoe

Rucoe is a manufacturer specializing in electronic switches, including illuminated tact switches, metal push button switches and other panel-mounted switching components.

With over 10 years of switch manufacturing experience, Rucoe provides a range of switch configurations for industrial control, electronic equipment and commercial applications.

Our product development and manufacturing services support different requirements for switch dimensions, LED colors, operating modes, terminal structures and customized designs. We also provide sample support and technical communication to help customers confirm product specifications before mass production.

For OEM and ODM projects, customers can discuss their panel dimensions, electrical requirements and application conditions with our team.

7. Frequently Asked Questions

Q1: What is the difference between momentary and latching versions?

A: A momentary switch returns to its original position after being released. A latching switch maintains its pressed position until it is pressed again. The choice depends on whether the equipment requires a temporary signal or a maintained switching state.

Q2: Can I choose different ring LED colors and voltages?

A: Yes. Red, green, blue and white LED options are available. Common LED voltage options include 5V, 12V and 24V. Please confirm the required voltage and LED color when placing an inquiry.

Q3: Is this 16mm metal push button switch suitable for outdoor equipment?

A: The IP67-rated design helps protect against dust and water ingress. Combined with its stainless steel housing, it can be used in suitable outdoor equipment. Actual performance also depends on correct panel installation, sealing and environmental conditions.

Q4: Can Rucoe provide customized wiring or switch configurations?

A: Yes. Different operating modes, LED configurations, contact arrangements and wiring options can be discussed for OEM and ODM projects. Please provide your application requirements and expected specifications for evaluation.
