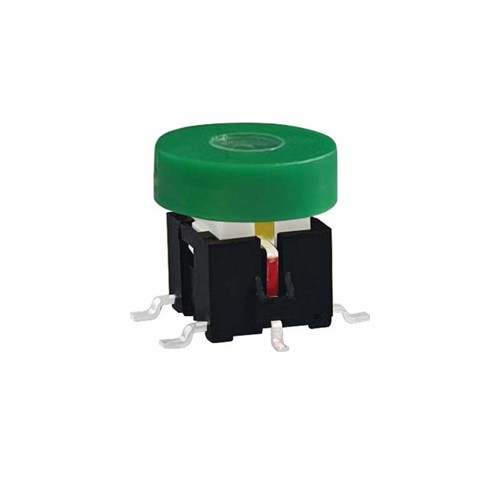

SMD Illuminated Momentary Switch

SMD illuminated momentary switches are a type of tactile switch that combines the functionality of a standard tactile switch with an integrated LED for illumination. These switches are widely used in various electronic devices and control panels where tactile feedback and visual indication of switch status are required.

LED SMD Tact Switches function similarly to standard tactile switches, featuring a button or actuator that users press to make momentary contact.

• When the button is pressed, the switch's internal mechanism closes the electrical contacts, allowing current to flow through the circuit momentarily.

• SMD Led Tact Switches offer tactile feedback and visual indication of switch status, making them ideal for various electronic devices and control panels. Their integration of LEDs provides clear illumination, enhancing user interaction and usability. By understanding the working principles, components, types, applications, and advantages of SMD illuminated momentary switches, designers and engineers can effectively incorporate them into their designs to create user-friendly and visually appealing products.

• SMD illuminated momentary switches are electro - mechanical components designed to be directly soldered onto the surface of a printed circuit board (PCB). The “momentary” aspect means that when the switch is pressed, it makes an electrical connection only for as long as the pressure is applied. Once the pressure is released, the switch returns to its original position, breaking the circuit. This type of operation is ideal for applications where a temporary activation is required, such as triggering a function, sending a signal, or initiating a process.

SMD illuminated momentary switches are electro - mechanical components designed to be directly soldered onto the surface of a printed circuit board (PCB). The “momentary” aspect means that when the switch is pressed, it makes an electrical connection only for as long as the pressure is applied. Once the pressure is released, the switch returns to its original position, breaking the circuit. This type of operation is ideal for applications where a temporary activation is required, such as triggering a function, sending a signal, or initiating a process.

The defining feature of these switches is the integrated illumination. Typically, they are equipped with LEDs (Light - Emitting Diodes) that can emit various colors, such as red, green, blue, yellow, or white. The LED illumination serves multiple purposes, including providing visual status indication, enhancing the user experience, and adding an aesthetic touch to the device
