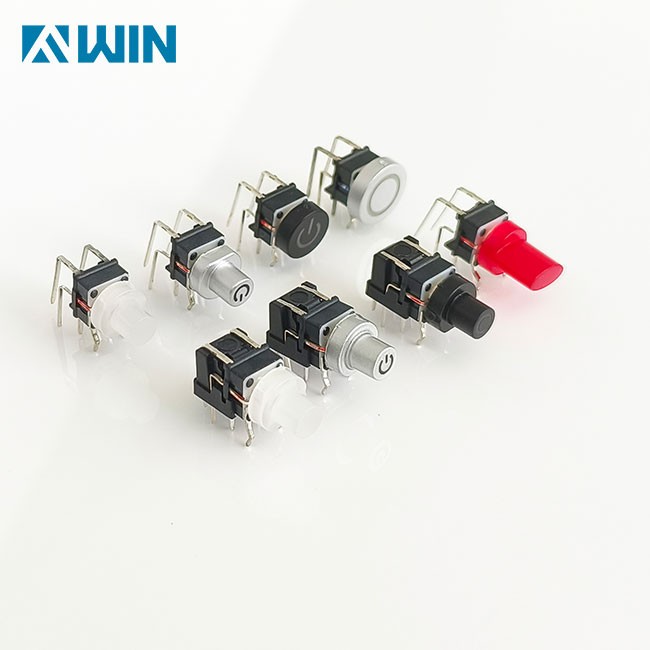

Mini Right angle LED Switch

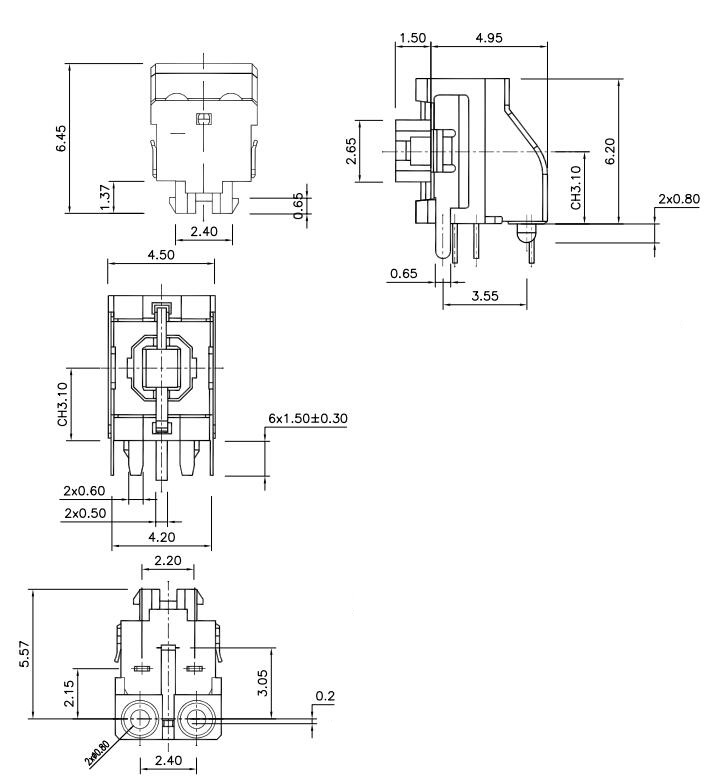

The actuator for TS20 series right angle and through hole illumianted tactile switch measures 4.5*6.2mm and features a travel of 0.20 mm ±0.10 mm

EMAIL

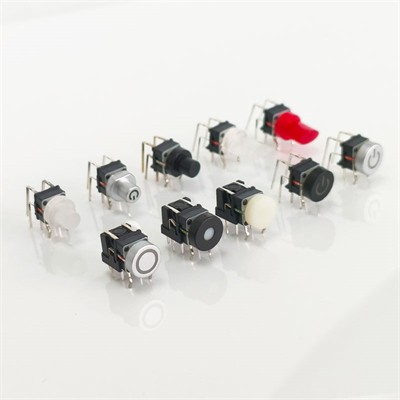

The illuminated tact switch with right - angle terminals is a specialized electronic component that combines the functionality of tactile feedback with visual indication, all while offering a space - efficient installation solution.

As mentioned earlier, the right - angle terminal design enables significant space savings on PCBs. This is not only important for reducing the overall size of the device but also for improving its thermal management and electrical performance. By allowing for a more efficient use of space, designers can fit more components onto a single board, leading to more feature - rich and compact products.

Improved Aesthetics

The illuminated aspect of the Right Angle Illuminated Tact Switch adds a touch of style and sophistication to any device. It can enhance the overall look and feel of consumer electronics, making them more appealing to users. In industrial applications, the illumination can also be used to create a more intuitive and user - friendly interface, making it easier for operators to understand the status of the equipment at a glance.

Enhanced Usability

The combination of tactile feedback and illumination makes these switches highly user - friendly. The tactile click provides a physical confirmation of the switch's activation, while the illumination offers a visual cue. This dual - feedback system is especially useful in applications where quick and accurate operation is required, such as in gaming controllers, remote controls, or medical devices.

    • Terminal Shape: The most obvious difference is the right - angle terminal design. Unlike traditional straight - pin terminals that extend directly from the switch body, right - angle terminals are bent at a 90 - degree angle. This allows for a more compact mounting on the printed circuit board (PCB), saving space and enabling more flexible circuit layout.

    • Integrated Illumination: These switches have an integrated light - emitting diode (LED) for illumination. This is a feature that many other standard tact switches lack. The LED can emit light in various colors, providing visual cues to indicate the status of the switch or the connected circuit.

    Functional Features

    • Tactile Feedback: Tactile Switch With LED Backlit with right - angle terminals provide clear tactile feedback when pressed. This tactile response, often accompanied by an audible "click", is designed to be precise and consistent, giving the user a distinct sense of confirmation that the switch has been actuated. This is different from some non - tactile switches that may not offer such a direct physical feedback.

    • Illumination Functionality: The integrated LED allows for visual indication. This can be used to show the on - off status of a device, signal different operating modes, or provide feedback in low - light environments. In contrast, regular switches without illumination require additional indicator lights or visual cues to convey similar information.

    Application Scenarios

    • Space - Constrained Designs: The right - angle terminal design makes theseLED Tact Switch With Cap particularly suitable for applications where space is limited, such as in small - form - factor consumer electronics like smartphones, tablets, and wearable devices. Standard switches with different terminal configurations may not be able to fit into these tight spaces as effectively.

    • Visual Indication Needed: The illumination feature makes them ideal for use in applications where visual feedback is important, such as in control panels for industrial equipment, audio - visual systems, and automotive interiors. In these cases, the ability to quickly identify the status of a switch at a glance is crucial for efficient operation and maintenance. Other types of switches without illumination may require additional effort to determine their status.
