SMD Slide Switch

The mini slide switch with 6 pins is a versatile and commonly used electronic component in circuit design


The mini slide switch with 6 pins is a versatile and commonly used electronic component in circuit design. Its main function is to enable or disable the flow of electrical current in a circuit. The switch can either be in the on or off position, and its state can be changed by sliding the switch to the opposite direction. In this article, we will discuss the features of the mini slide switch with 6 pins.

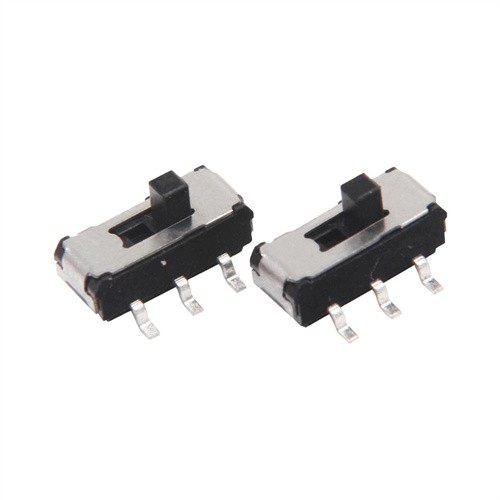

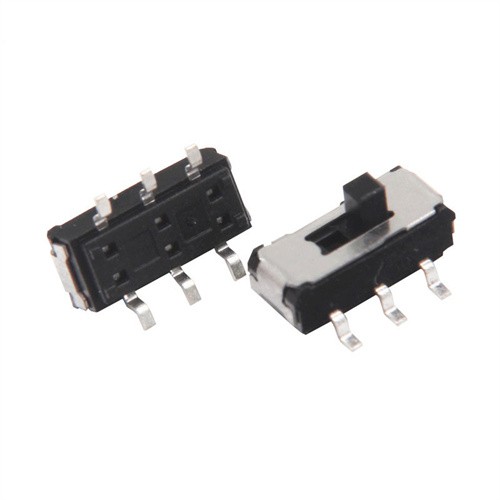

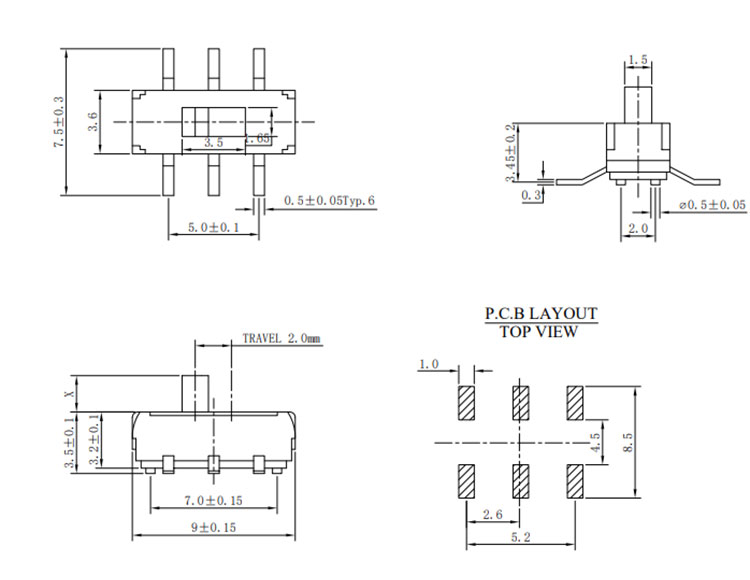

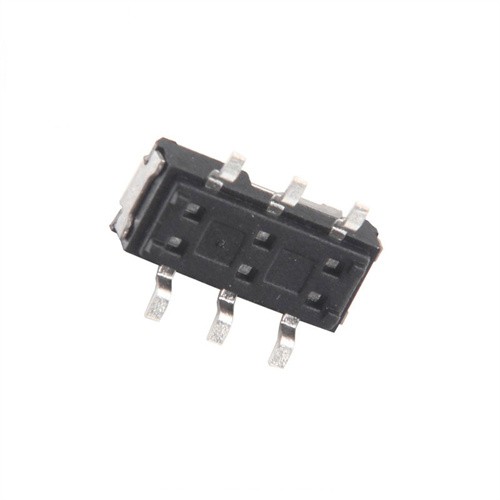

The slide switch consists of a small rectangular box with a sliding tab that moves back and forth. It has six pins, two for power input, two for the output, and two that serve as a connection for the switch that turns the system on and off. The pins are usually arranged in a straight line, which makes it easy to insert into a printed circuit board (PCB).

The mini slide switch is an ideal choice for low-power applications because it has a low voltage and can handle a maximum current of up to 300 mA. It is also used extensively in hobbyist projects, where the switching requirements are minimal, and cost is a primary consideration.

The slide switch's small size makes it suitable for use in compact designs where space is limited, such as in portable electronic devices. The switch's small size does not compromise its durability, and it can withstand repeated sliding actions, making it ideal for high-demanding applications.

Another advantage of the mini slide switch is its ease of operation. The switch can be easily slid up or down using the thumb or index finger. An audible click sound is produced when the switch is moved to the on or off position, making it easy to determine whether the switch is in the desired state.

In conclusion, the mini slide switch with 6 pins is a versatile and reliable component used in circuit design. Its small size, ease of operation, and durability make it a popular choice in a wide range of applications.
