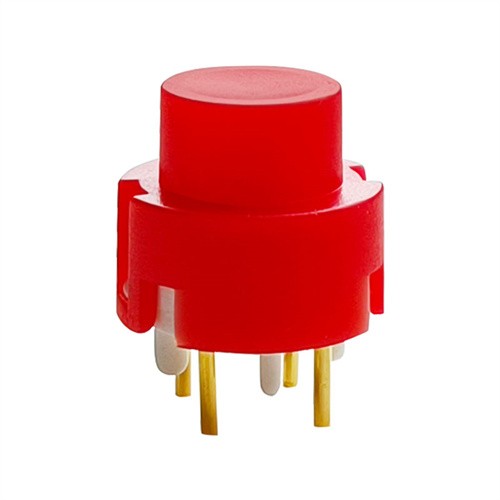

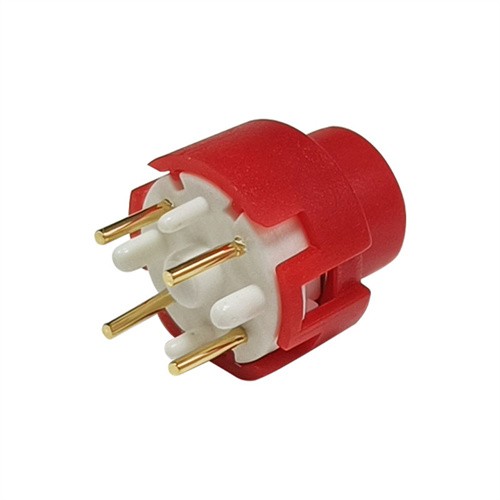

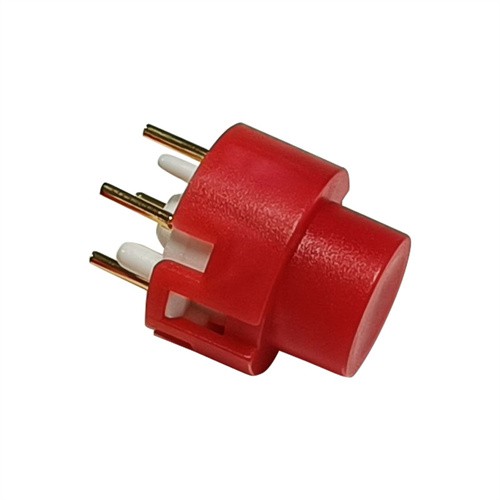

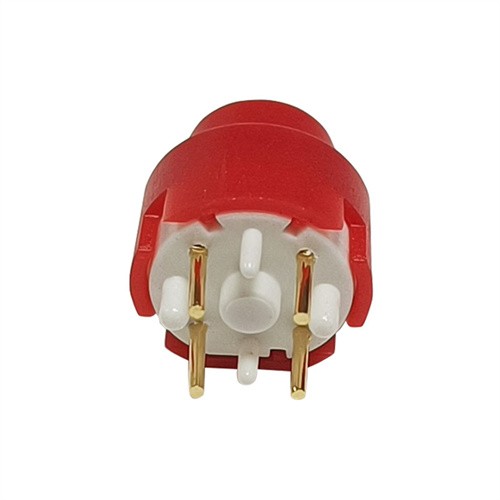

Tactile Push Switch

A SPST keyboard tact button switch is a type of switch commonly used in electronic devices.

EMAIL

A SPST keyboard tact button switch is a type of switch commonly used in electronic devices. SPST stands for Single Pole Single Throw, which means that the switch has one input and one output, and when the button is pressed, the circuit is completed, allowing electricity to flow through the switch.

The keyboard tact switch is a type of tactile switch, meaning that it gives the user physical feedback when the button is pressed. This feedback can be a "click" sound, a "snap" feeling, or a combination of both. This type of feedback is useful because it lets the user know when they have successfully activated the switch.

The SPST keyboard tact button switch is most commonly used in keyboards, but it can also be found in other electronic devices such as computer mice, remote controls, and gaming controllers.

One of the benefits of using a SPST keyboard tact button switch is its low profile. The switch is designed to be small and compact, which makes it ideal for use in devices that require a lot of switches in a small space. The low profile also makes the switch easy to press, which can increase the user's typing speed and accuracy.

Another benefit of using a SPST keyboard tact button switch is its durability. The switch is designed to withstand constant use, and it can last for thousands of actuations without wearing out. This makes it ideal for use in devices that are used frequently, such as keyboards.

PRODUCT PROFILE
                                         Model                   TS4-2R
                                         Product Item                   Push Button Switch
                                         Cut out Size                   11.5mm
                                         Button Options                   White/ Red/Blue/Yellow/Green
                                         Actuation Force                   250gf
                                         Function                   Momentary
                                         Rating
                   6A 125VAC, 3A 250VAC
                                         Payment
                   T/T 100% in advance
                                         Delivery
                   15-20 workdays
                                         Shippment                   DHL/ FedEx /UPS

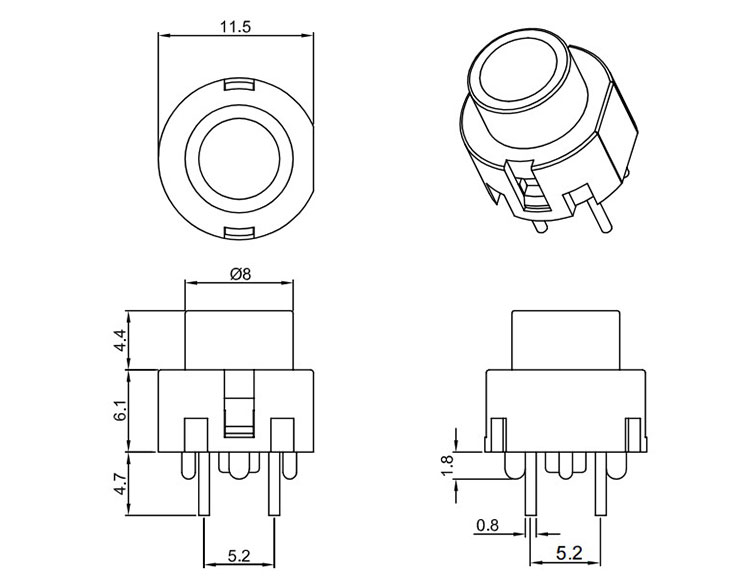

PRODUCT DIMENSION


PRODUCT CATEGORY

Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.


aPPLICATIONS

Applications of 12mm Waterproof Round Button Switch:

1. Automotive industry:

The 12mm waterproof round button switch is widely used in the automotive industry for applications that require water-resistant switches. These switches are used in the dashboard, glove box, and other areas of the car that are exposed to moisture.

2. Industrial equipment:

The 12mm waterproof round button switch is used in various types of industrial equipment such as vending machines, vending kiosks, and other applications that require water-resistant switches. The switch is ideal for use in harsh environments where exposure to moisture, dust, and high levels of vibration is common.

3. Marine equipment:

The 12mm waterproof round button switch is used in various marine equipment such as boats, shipyards, and other marine applications where exposure to water and moisture is common. These switches are used to control various marine equipment such as lights, pumps, and motors.

4. Medical equipment:

The 12mm waterproof round button switch is used in various medical equipment such as healthcare monitoring devices, dialysis machines, and other medical applications that require water-resistant switches.

cOMPANY INFO

Rucoe Electronics is a leading manufacturer of illuminated switches which was established in 2013,our office is located in Shenzhen, and our factory in Dongguan which names Dongguan FVWIN Electronics Co.,Ltd. We provides high quality, high precision switches.with Innovative, Good quality management philosophy, strive hard to improve product design, tooling, injection molding technology


OUR EXHIBITIONS


EQUIPMENT

We have horizontal injection molding machine,punching machine,vertical milling machine,life tester,insulation resistance tester,salt spray tester,load curve meter,laser engraving machine.


CERTIFICATIONS

Rucoe meets its customers' highest demands through certified quality, environmental and safety management systems;we also offer OEM and ODM etc strategic customized service.
