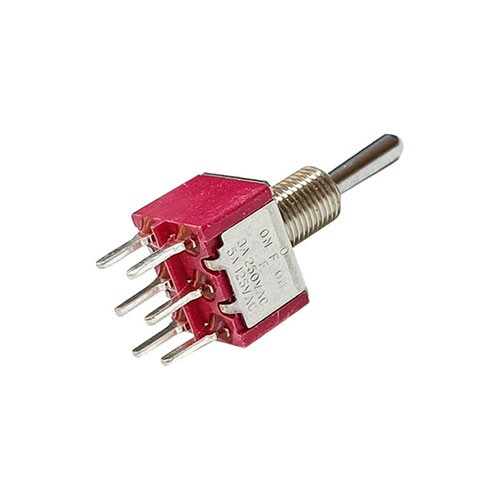

Toggle Switch With 6 Terminals

A mini toggle switch is a two-way switch that allows for an electrical circuit to be easily turned on or off. It is a small switch that can be easily mounted on a circuit board or enclosure. A 6-pin mini toggle switch has six terminals that allow for more functionality than a standard 2-pin switch.

The six terminals can be used for a variety of purposes, such as connecting to different circuits, controlling multiple devices, or creating different modes of operation. The switch can also be used to create multiple levels of power, allowing for greater control over the circuit.

Mini toggle switches come in a variety of sizes and shapes, but they all share some common features. They are small and easy to install, making them ideal for adding functionality to small electronic devices. They are also very durable, able to withstand frequent use without breaking or wearing out.

One of the most common uses for a 6-pin mini toggle switch is to control power to different parts of a circuit. By connecting one or more of the terminals to different parts of a circuit, the switch can be used to turn on and off various devices or components. For example, a switch could be used to turn on a fan when a certain temperature is reached or to turn on an alarm when a motion detector is triggered.

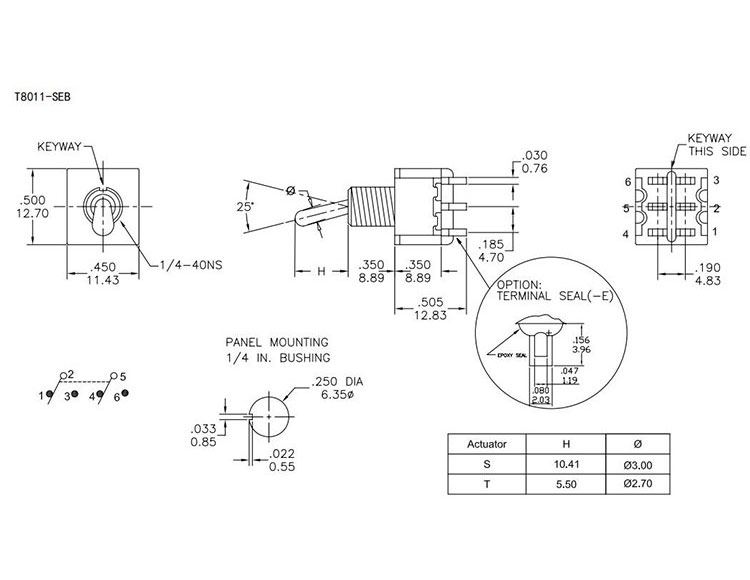

PRODUCT DIMENSION

PRODUCT CATEGORY

Tactile switches, button switches, toggle switches, rocker switches, slide switches, microswitches, sockets and connectors, as well as hardware stamping and plastic injection.

aPPLICATIONS

Applications of Subminiature Toggle Switches

Subminiature toggle switches are used in different electronic devices and circuits. They are particularly useful in applications where small size and low voltage and current are required. Here are some of the common applications:

1. Portable electronic devices

Subminiature toggle switches are ideal for use in portable electronic devices that require small switches. These devices include small-sized radios, calculators, and other small electronic gadgets.

2. Amplifiers

Subminiature toggle switches are also used in small electronic amplifiers that require low voltage and current. These amplifiers are commonly used in small speakers, headphones, and other audio devices.

3. Automotive applications

Subminiature toggle switches can be used in automotive applications such as dashboards, interior lights, and other electronic circuits in cars.

4. Industrial applications

Subminiature toggle switches are used in different industrial applications where small size and low voltage and current are required. These applications include control boxes, small machines, and other electronic circuits.
