Broadcast Vision Mixer illuminated buttons

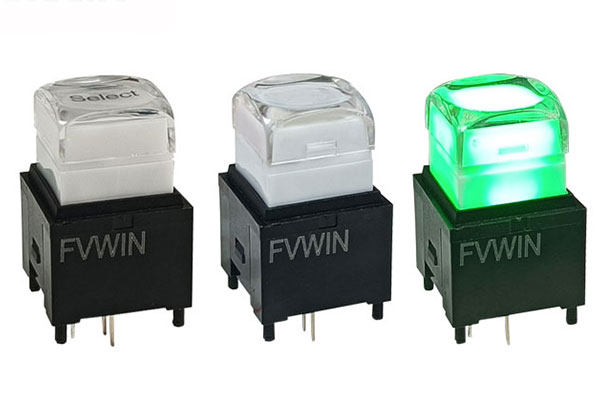

A broadcast vision mixer, also known as a video switcher or production switcher, is a device used in television studios and live video production to switch between multiple video sources. led Illuminated push-buttons on a broadcast vision mixer serve as user interface elements to control various functions of the switcher.

As we all know, the Broadcast vision mixers have a control panel with various buttons, knobs, and other controls. Illuminated buttons are a key component of this interface; The illuminated push buttons on a vision mixer typically represent different video sources, transitions, effects, or other functions. Operators press these buttons to make on-the-fly decisions during a live production.


Illuminated buttons provide visual feedback to the operator, the illumination may change color or intensity to indicate the status of a selected source, the type of transition, or the activation of a specific function.

Some vision mixers allow for customizable labels or legends on the illuminated buttons, this flexibility enables operators to label buttons according to the specific sources or functions they represent. We provide the laser engraved and film label for the customzied logo options. The broadcasting led illuminated push buttons are designed to provide tactile feedback, allowing operators to feel when a button is pressed. This tactile aspect is crucial for ensuring precise and accurate control during a live production.Given the demanding nature of live production environments, the buttons are designed to be durable and able to withstand frequent use, the concave shape of the illuminated button which makes a obvious tactile feedback and finger comfortable feeling.

The illuminated buttons are an integral part of the vision mixer's overall control system. They are connected to the vision mixer's electronics to relay operator inputs and receive feedback.

Color-coded illumination is often used to represent different types of sources or functions. For example, different colors may be assigned to cameras, graphics, or special effects.

Some vision mixers have dedicated illuminated buttons for critical functions, such as an emergency cut or take button. These buttons are strategically placed for quick access during unforeseen situations.The layout and design of the illuminated button interface aim to be user-friendly, allowing operators to work efficiently and make rapid decisions in a fast-paced live production environment.
