Metal Push Button Switch Essentials: Actuation, Contacts, IP Rating & More

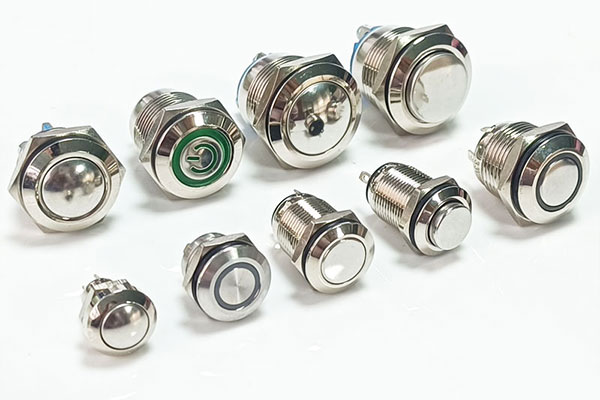

A metal push button switch is a small component, but it can have a big impact on how a control panel or piece of equipment works. When selecting a metal switch, many buyers first pay attention to the size and appearance. These are important, but they are only part of the factor. The switching function, electrical rating, mounting method, protection level, and operating life can all affect whether the switch is suitable for the final product.

One of the first points to check is the mounting size. Metal push button switches are available in several common sizes, such as 12mm, 16mm, 19mm, and 22mm. The mounting hole needs to match the switch diameter, while the panel thickness also needs to be within the specified range. Checking these dimensions before ordering helps prevent installation problems, especially when the control panel has already been manufactured.

1. The switching function is another important point. Momentary switches return to their original position when the button is released, making them suitable for start, reset, trigger, and similar functions. Latching switches remain in the selected position after pressing and are commonly used for ON/OFF control. Choosing between these two types depends on how the operator needs to control the equipment.

2. The electrical rating should never be overlooked. Voltage and current ratings indicate the type of electrical load the switch can handle. Buyers should compare the switch specifications with the actual circuit requirements instead of selecting a product based only on its appearance. Terminal configuration, contact arrangement, and wiring method should also be considered during the design stage.

3. The working environment is equally important. A switch installed inside an electronic device may have different requirements from one mounted on an outdoor control box. For equipment exposed to water or dust, an IP-rated waterproof metal push button switch can provide better protection. An anti-vandal metal body is also useful for public equipment, industrial machines, access control panels, and other applications where the switch may receive frequent or rough operation.

4. For applications that need a visible status indication, an illuminated metal push button switch can be fitted with an LED. Red, green, blue, white, and other LED colors can be used to indicate power, alarm, standby, or operating conditions. The LED voltage and wiring should match the equipment's power supply.

5. Finally, purchasers should consider the button head style, terminal type, operating life, panel appearance, and installation method. These details may seem small, but they can make a noticeable difference during assembly and daily use.

When choosing a metal push button switch, there is no single specification that matters most. The right choice comes from looking at the whole application and making sure the switch matches the mechanical, electrical, and environmental requirements of the equipment.
