The knowledge of 16mm metal push button switch

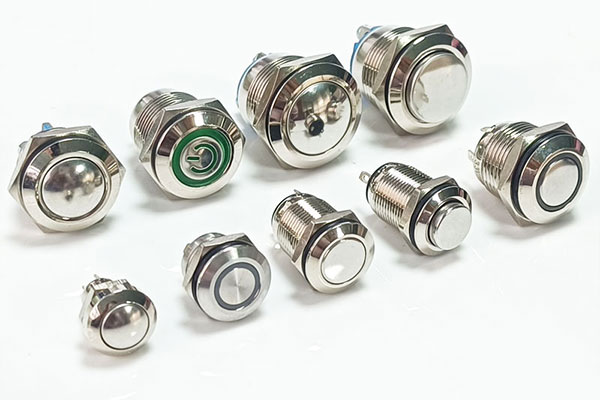

The 16mm metal push button switch is a heavy-duty electrical component engineered for durability and reliable tactile control, defined by its 16mm panel cutout diameter—a standard size for industrial and commercial equipment. Unlike the compact right-angle tact switches designed for miniaturized devices, this switch prioritizes ruggedness, making it a staple in environments where wear, moisture, or physical impact are common. While many models are non-illuminated, variants with integrated LEDs bridge to terms like illuminated tact push button and LED tact switch, merging industrial resilience with visual status feedback.

Core Design & Mechanics

At its foundation, the metal switch features a metal housing (typically 304 stainless steel, brass, or aluminum oxide) that resists corrosion, scratches, and vandalism . Internally, it uses either momentary (self-resetting) or locking (maintained) actuation: momentary models create a temporary circuit connection when pressed (resetting when released) for functions like emergency stops, while locking versions stay engaged until pressed again (ideal for main power controls) . The contact system—often silver alloy for conductivity—handles ratings up to 10A at 250V AC, far higher than the low-current operation of standard illuminated tact switches .

Illuminated variants (a key overlap with your prior focus) integrate LEDs that emit red, green, blue, or custom colors (even RGB OR bi-color options) . These function like LED tact switches but with industrial-grade enhancements: built-in voltage regulators support 3V to 220V power, and some feature ring or dot indicators visible even in bright sunlight or dusty conditions . A satisfying "click" and 3-5N actuation force provide tactile confirmation, preventing accidental presses .

Defining Features

1. Environmental Protection: Most models carry IP65 or IP67 ratings, meaning they are dust-tight and water-resistant (IP67 withstands 30 minutes submersion in 1m of water)—critical for outdoor kiosks, washdown areas, or marine equipment .

2. Longevity: Mechanical lifespans reach 1,000,000 cycles for momentary models and 500,000 for locking ones, outperforming many plastic switches .

3. Easy Installation: Designed for standard 16mm panel holes, it uses screw terminals or solder lugs for quick wiring—no custom modifications needed .

4. Certifications: Compliance with CE, RoHS, and UL standards ensures safety in industrial, automotive, and medical settings .

Key Applications

This metal push button switch excels where ruggedness and clarity matter:

• Industrial: Control panels for packaging machines, assembly lines, and diagnostic equipment—IP67 models withstand extreme temps (-40℃ to 85℃) .

• Automotive & Marine: Dashboard controls, boat navigation systems, and truck emergency buttons, where corrosion resistance is vital .

• Commercial: Coffee machines, vending kiosks, and security panels—illuminated versions signal "active" status to users .

• Safety-Critical: Emergency stop buttons (E-stops) on machinery, leveraging momentary actuation and high current handling .

How It Compares to Illuminated Tact Switches

While both offer tactile feedback and LED options, the 16mm metal button switch is built for heavy use: it handles higher power, resists harsh conditions, and fits larger panels. In contrast, illuminated tact switches prioritize miniaturization (3-12mm size) for smartphones or remotes. For example, a gaming console uses tiny tact switches for controller buttons, but the console’s industrial power button might be a 16mm metal LED switch—combining the visual clarity of an illuminated tact push button with industrial durability.
