LED Tact Switch 6x6 SMD: Features, Specs and Applications Guide

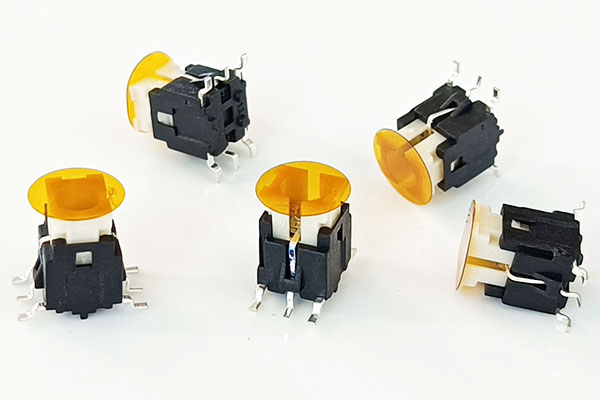

The 6x6mm SMD LED tact switch is a compact switching component designed for electronic products that require both tactile operation and visual indication. The TS9 Series features a 6x6mm footprint with an overall height of 9mm, making it suitable for PCB designs where space is limited but a comfortable button height is still needed. By combining a mechanical tactile switch with an integrated LED, the TS9 Series provides a simple and practical solution for common modern control interfaces.

One of the key advantages of the TS9 Series is its compact SMD construction. It can be mounted directly onto the PCB and is suitable for automated assembly processes, helping manufacturers improve production efficiency. The 6x6mm footprint also allows designers to arrange multiple buttons closely together without taking up unnecessary board space. This is especially useful for products with compact control panels, keyboards, and handheld electronic devices.

The 6x6mm illuminated tact switch also provides clear visual feedback through its integrated LED. Depending on the product configuration, the LED can be used to indicate power, operating status, function selection, or other user information. This combination of tactile feedback and LED indication can make the user interface easier and more intuitive to operate.

Another feature that attracts customers is its practical balance between size and durability. The TS9 Series is designed for repeated pressing and everyday operation, making it suitable for products that are used frequently. Its compact structure helps save PCB space while still providing a audible button feedback. For manufacturers, this can reduce the need for separate indicator components and help create a cleaner product appearance.

A TS9 Series LED tactile switch can be used in a variety of applications, including consumer electronics, remote controls, gaming controllers, keyboards, audio equipment, broadcast control panels, communication devices, automotive electronics, medical equipment, test instruments, and industrial control systems. It is especially useful when a product requires a small PCB-mounted switch with integrated illumination.

With its 6x6mm footprint, 9mm height, SMD construction, tactile feedback, and LED indication, the TS9 Series is a practical choice for compact electronic designs.

Looking for a reliable 6x6mm LED tact switch for your next project? Contact us today for TS9 Series specifications, samples, customization options, and a competitive factory-direct quotation.
