RGB Illuminated Tact Switch: Features, Specs and Applications Guide

An RGB illuminated tact switch combines a tactile switching function with colorful LED indication in one compact component. The TS7 Series features a 7x7mm PCB footprint and is designed for applications that need both clear button feedback and attractive illumination. Unlike a standard tact switch, it can provide visual information through different LED colors, helping users quickly recognize the operating status or selected function of a device.

The TS7 Series offers both bicolor and RGB LED options, giving product designers more flexibility when developing control interfaces. A bicolor version can use two colors to represent different functions or operating conditions, while the RGB version can produce multiple colors by combining red, green, and blue LEDs. This makes it possible to create more intuitive controls without adding separate indicator lights to the panel.

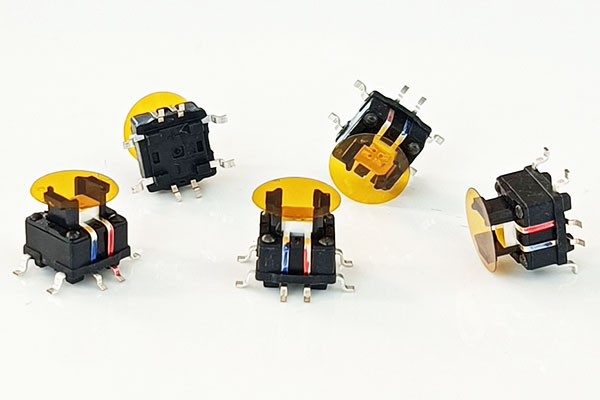

A major advantage of the 7x7mm RGB tact switch is its flexible mounting design. The TS7 Series can be offered with Surface Mount  and Through-Hole configurations, allowing customers to select the terminal style according to their PCB design and assembly process. SMD versions are suitable for compact PCBs and automated pick-and-place production, while through-hole versions provide a traditional mounting method and can offer secure mechanical support for applications requiring frequent button operation.

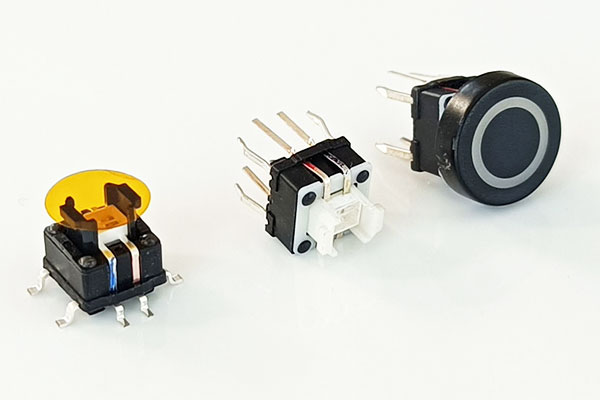

The TS7 Series also comes with a 10mm round cap, which provides a larger and more comfortable pressing surface while keeping the switch body compact. The tactile mechanism gives users a noticeable pressing response, and the integrated LED provides clear illumination. For product manufacturers, combining the switch, LED, and cap into one component can help simplify panel design and create a cleaner appearance.

An RGB illuminated tactile switch can be used in many applications, including audio equipment, broadcast consoles, video control panels, gaming equipment, studio equipment, communication devices, industrial controllers, testing instruments, and other electronic control systems. It is especially useful for products where quick visual identification and tactile feedback are important.

With its 7x7mm size, SMD and through-hole mounting options, bicolor and RGB LED configurations, and 10mm round cap, the TS7 Series provides a flexible solution for modern illuminated control interfaces.
