The Complete Beginner’s Guide to DIP Switches

A DIP switch is a small component used on a circuit board to set or change functions without changing the circuit itself. The name comes from Dual In-line Package, referring to the traditional package shape. DIP switches are often used for simple ON/OFF settings, mode selection, address settings, and other configuration tasks.

From an engineer's point of view, the main advantage of a DIP switch is its simplicity. Each switch position can be set independently, and the selected position stays in place until it is changed. This makes DIP switches useful when a product needs a fixed setting during normal operation but may need adjustment during installation, testing, or maintenance.

What Should You Check Before Choosing a DIP Switch?

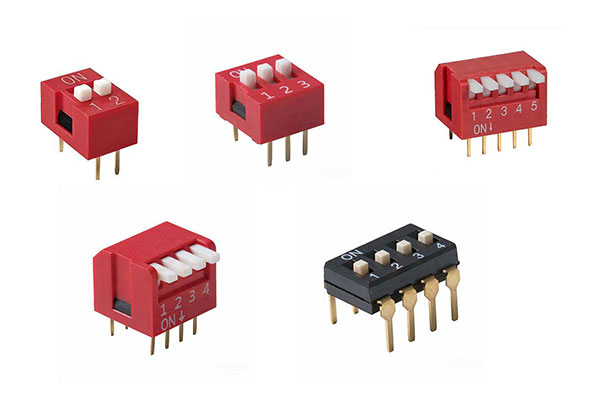

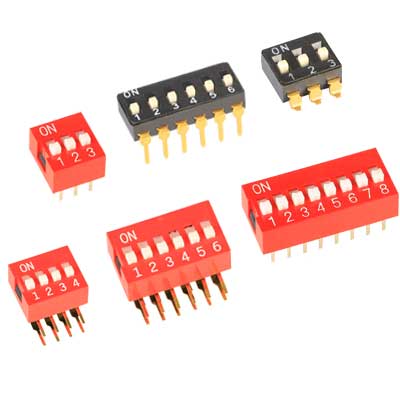

The first point is the number of positions. A 1-way DIP switch provides one ON/OFF setting, while 2-way, 4-way, 6-way, 8-way, and 10-way versions allow more configuration options.

The mounting method is also important. Through-hole DIP switches are soldered through the PCB and provide a secure mechanical connection. SMD versions are placed directly on the PCB surface and are better suited to automated assembly and compact board designs.

Engineers should also check the pitch, switch height, electrical rating, actuator style, and PCB footprint. These dimensions need to match the board and enclosure. Choosing the wrong pitch or terminal layout can result in unnecessary PCB changes.

Main Features of DIP Switches

DIP switches are valued for their compact size and straightforward operation. They require no software to change a basic setting, and the ON/OFF position can normally be checked directly from the actuator. Their mechanical construction also makes them suitable for equipment that needs a simple and repeatable configuration method.

Depending on the application, DIP switches can be used in industrial controllers, communication equipment, test instruments, audio equipment, electronic modules, and consumer products.

Why Choose Rucoe?

For manufacturers, the supplier is just as important as the component itself. Rucoe provides different DIP switch specifications for PCB applications, including various positions, mounting options, and configurations. This makes it easier for engineers to select a switch that fits an existing PCB design.

Rucoe also supports OEM and ODM requirements, sample orders, and customized specifications. With manufacturing experience, production control, and inspection procedures, we focus on keeping product quality consistent from one batch to the next.

For buyers developing a new product, the right DIP switch should be selected according to the PCB, electrical requirements, installation method, and actual use. A suitable switch can keep the circuit simple, make configuration easier, and avoid unnecessary redesign work.
